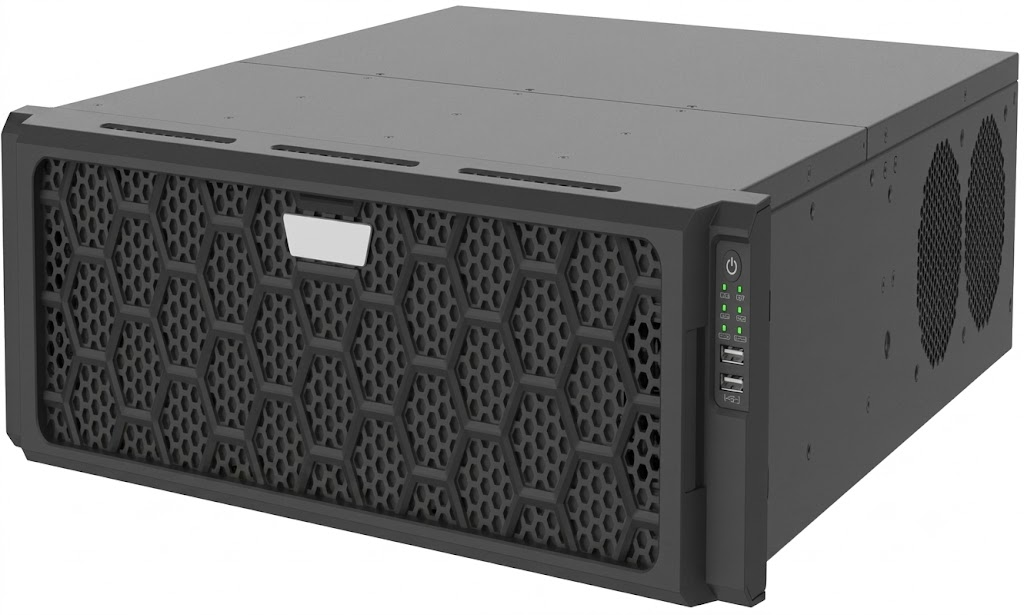

NVR524-E Series 128/256CH 8K AI 24SATA Guard Viewer NVR
 | NVR524-E Series 128/256CH 8K AI NVRChannels: 128/256-ch Bandwidth: 640 Mbps Storage: 24 SATA, up to 16TB each + RAID 0/1/5/6/10/50/60 Output: HDMI1 8K + HDMI2 4K + 2×VGA AI: Face Comp, SIP, UMD, Temperature, Video Metadata APP: Guard Viewer / Guard Live |
Features
*128/256-channel IP camera input
*Ultra 265/H.265/H.264 video formats
*HDMI1 up to 8K (7680×4320); HDMI2 up to 4K (3840×2160)
*HDMI1/VGA1 and HDMI2/VGA2 independent output
*Up to 32 Megapixels resolution recording
*Incoming/Outgoing bandwidth: 640 Mbps
*24 SATA HDDs, up to 16TB each + RAID 0/1/5/6/10/50/60
*Support N+1 Hot spare; HDD hot swap
*Support 12V power output
*AI: Face Detection/Comparison, Vehicle Detection, SIP, UMD, Temperature Detection, People Counting, Video Metadata, Traffic Monitoring
*ONVIF conformance (Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T) and RTSP protocols
*ANR technology for offline storage reliability
*38-language GUI support
*Support ODM/OEM customization
*Support cloud upgrade
Specifications
Decoding | Description |
Decoding Format | Ultra 265, H.265, H.264 |
Decoding Capability | 2×32MP@30, 4×16MP@30, 5×12MP@30, 8×4K@30, 12×5MP@30, 20×3MP@30, 32×1080P@30, 64×720P@30, 128×D1 |
Audio Compression | G.711A, G.711U |
Network | Description |
Incoming Bandwidth | 640 Mbps |
Outgoing Bandwidth | 640 Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
Video/Audio Input | Description |
IP Video Input | NVR524-128E: 128-ch / NVR524-256E: 256-ch |
RCA Audio Input | 1-ch |
Video/Audio Output | Description |
HDMI Output | HDMI1: 8K (7680×4320)/30Hz, 4K/60Hz, 1920×1080/60Hz, …; HDMI2: 4K (3840×2160)/60Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
VGA Output | 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
RCA Audio Output | 2-ch |
Liveview Display | 1/4/6/8/9/16/25/36/64 |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Two-way Audio | 1-ch, RCA |
Recording | Description |
FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8MP) |
Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
Synchronous Playback | 16-ch |
Smart / AI | Description |
VCA Detection by IPC | Face Detection, Face Comparison, SIP, UMD, Temperature Detection (Fire, Smoke, Temp Measurement), People Counting, Video Metadata, Traffic Monitoring |
VCA Search | Face Snapshot Search, Face Comparison Search, Vehicle Search, Human Body Search, People Counting Report, Heat Map |
Storage | Description |
SATA Interfaces | 24 SATA interfaces |
Capacity per HDD | Up to 16TB |
RAID | RAID 0, 1, 5, 6, 10, 50, 60 |
N+1 Hot Spare / Hot Swap | Supported |
External Interface | Description |
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet |
USB | Front: 2×USB2.0; Rear: 2×USB3.0 |
RS485 / RS232 | 1 / 1 |
Alarm In / Out | 16-ch / 10-ch |
eSATA | 1 |
Power Output | 12V |
General | Description |
Power Supply | AC 100~240V |
Power Consumption (no HDD) | ≤50W |
Working Temperature | -10°C ~ +55°C |
Working Humidity | ≤90% RH (non-condensing) |
Dimensions (W×D×H) | 485mm×539mm×175mm |
Weight (no HDD) | ≤10 kg |
Certification | CE, FCC, RoHS, WEEE |
