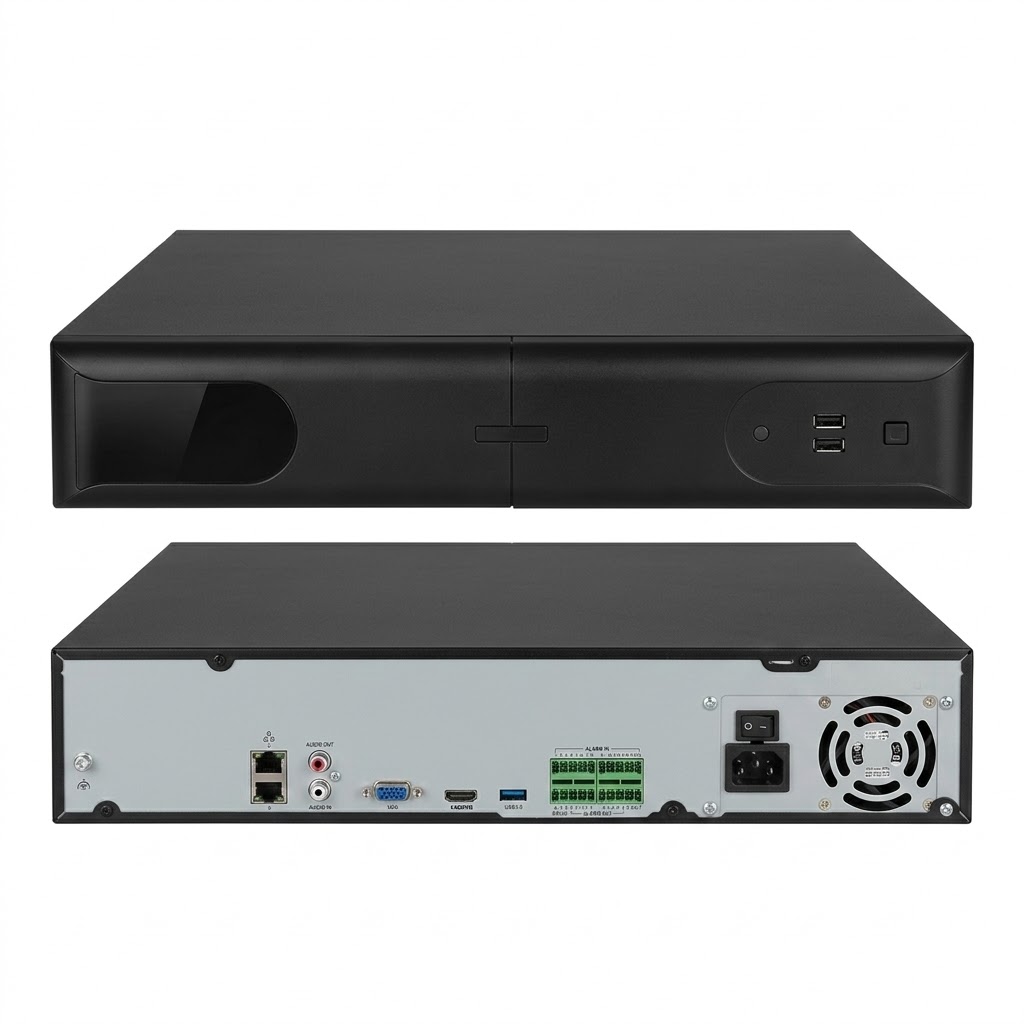

NVR508-B Series 16/32/64CH 4K AI 8SATA Guard Viewer NVR

NVR508-B Series 16/32/64CH 4K AI NVR

Channels: 16/32/64-ch
Bandwidth: 320/160 Mbps
Storage: 8 SATA, up to 12TB each
Output: HDMI 4K + VGA
AI: VCA, SIP, People Counting, UMD (8-ch)
APP: Guard Viewer / Guard Live

Get a Quote

Features

*16/32/64-channel IP camera input
*Ultra 265/H.265/H.264 video formats
*Live view: 64CH 12MP; Playback: 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25, 64×D1
*Incoming/Outgoing bandwidth: 320/160 Mbps
*AI: VCA Detection (Intrusion, Cross Line, Enter/Leave, UMD), Smart Intrusion Prevention, People Counting
*SIP + Vehicle Detection + UMD by camera: 8-ch total
*8 SATA HDDs, up to 12TB per HDD
*Support N+1 Hot spare
*HDMI (4K) + VGA simultaneous output
*ANR technology for offline storage reliability
*Support Mobile APP: Guard Viewer (iOS, Android); PC: Guard Station
*Support ODM/OEM customization
*Support cloud upgrade

Specifications

Video/Audio Input	Description
IP Video Input	NVR508-16B: 16-ch / NVR508-32B: 32-ch / NVR508-64B: 64-ch
Audio Input	1-ch, RCA
Network	Description
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Video/Audio Output	Description
HDMI Output	4K (3840×2160)@30Hz, 1920×1080p@60Hz, 1920×1080p@50Hz, 1600×1200@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz
VGA Output	1920×1080p@60Hz, 1920×1080p@50Hz, 1280×1024@60Hz, 1600×1200@60Hz, 1280×720@60Hz, 1024×768@60Hz
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	16B: 1/4/6/8/9/16; 32B: 1/4/6/8/9/16/25/36; 64B: up to 64
Corridor Mode Screen	3/4/5/7/9/10/12/16 (up to 32 for 32B/64B)
Recording	Description
Decoding Format	Ultra 265/H.265/H.264
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Playback Capability	2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 16×1080P@30, 32×960P@25, 36×720P@30, 64×D1
Smart / AI	Description
VCA Detection by Camera	Intrusion Detection, Cross Line Detection, Enter/Leave Area, Defocus, Scene Change, Object Left/Removed, Auto Tracking, UMD
Smart Intrusion Prevention + Vehicle Detection + UMD (by camera)	8-ch total
People Counting	People Flow Counting, Crowd Density Monitoring
VCA Search	Behavior Search, People Counting Report, Vehicle Search
Storage	Description
SATA Interfaces	8 SATA interfaces
Capacity per HDD	Up to 12TB
N+1 Hot Spare	Supported
External Interface	Description
Network Interface	2 RJ-45 10M/100M/1000M self-adaptive Ethernet
USB	Front: 2×USB2.0; Rear: 1×USB3.0
RS485	1
Alarm In / Out	16-ch / 4-ch
General	Description
Power Supply	100~240V AC
Power Consumption (no HDD)	≤32W
Working Temperature	-10°C ~ +55°C
Working Humidity	≤90% RH (non-condensing)
Dimensions (W×D×H)	442mm×426mm×89mm
Weight (no HDD)	≤4 kg
Certification	CE, FCC, UL, RoHS, WEEE
