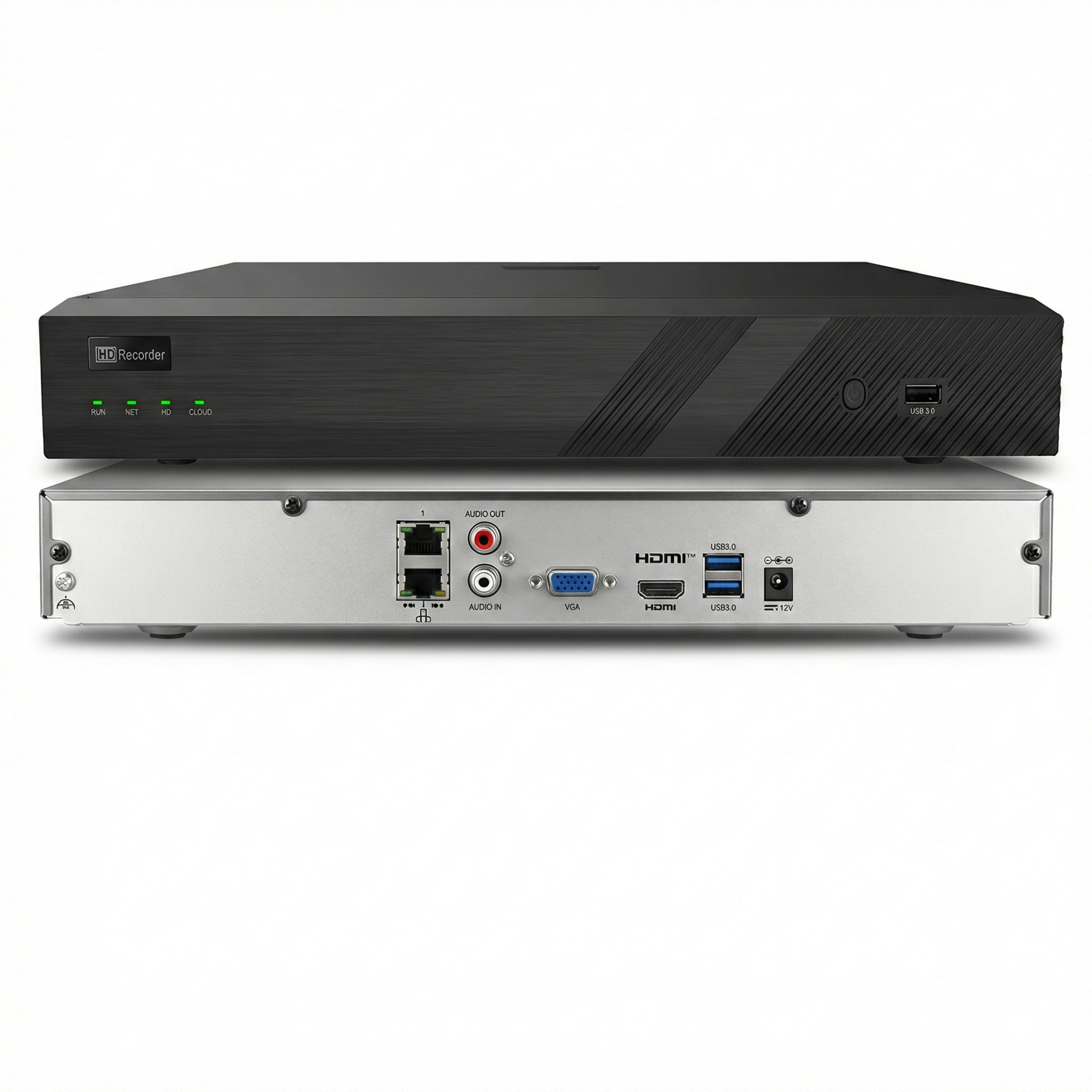

NVR3232-V3-IQ 32CH 4K AI Guard Viewer NVR
 | NVR3232-V3-IQ 32-Channel 4K AI NVRChannels: 32-ch Bandwidth: 160/128 Mbps Storage: 2 SATA, max 10TB each Output: HDMI 4K + VGA AI: Face Recognition, SIP, UMD (2/4/8-ch by NVR) APP: Guard Viewer / Guard Live |
Features
*32-channel IP camera input
*Ultra H.265/H.265/H.264 video formats
*Playback (Smart Off): 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1
*Incoming/Outgoing bandwidth: 160/128 Mbps
*Backend AI: 2-ch Face Recognition, 4-ch Smart Intrusion Prevention, 8-ch UMD (even with 3rd-party cameras)
*2 SATA hard disk interfaces, max 10TB each
*ONVIF conformance (Profile S, Profile G, Profile T) and RTSP
*1-ch HDMI 4K + 1-ch VGA simultaneous output
*ANR technology for offline storage reliability
*38-language GUI support
*Support cloud upgrade
*Support ODM/OEM customization
Specifications
Decoding | Description |
Decoding Format | Ultra 265, H.265, H.264 |
Decoding Capability (Smart Off) | 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 |
Decoding Capability (Smart On) | 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30, 32×D1 |
Audio Compression | G.711A, G.711U |
Network | Description |
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 128 Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
Video/Audio Input | Description |
IP Video Input | 32-ch |
RCA Audio Input | 1-ch |
Video/Audio Output | Description |
HDMI Output | 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
VGA Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
RCA Audio Output | 1-ch |
Liveview Display | 1/4/6/8/9/16/25/32 |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Recording | Description |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
Synchronous Playback | 16-ch |
Smart / AI | Description |
VCA Detection by IPC | Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, People Counting, Traffic Monitoring |
Smart by NVR | Face Detection, Face Comparison, SIP, UMD |
Face Comparison by NVR | 2-ch (face cameras); 1-ch (normal cameras) |
SIP by NVR | 2-ch |
UMD by NVR | 4-ch |
VCA Search | Face Snapshot Search, Face Comparison Search, Vehicle Search, Human Body Search, People Counting Report, Heat Map |
Storage | Description |
SATA Interfaces | 2 SATA interfaces |
Capacity per HDD | Up to 10TB |
External Interface | Description |
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet |
USB | Front: 1×USB2.0; Rear: 1×USB2.0, 1×USB3.0 |
Alarm In / Out | N/A |
General | Description |
Power Supply | DC 12V/3A |
Power Consumption (no HDD) | ≤12W |
Working Temperature | -10°C ~ +55°C |
Working Humidity | ≤90% RH (non-condensing) |
Dimensions (W×D×H) | 380mm×315mm×53mm |
Weight (no HDD) | ≤2 kg |
Certification | CE, FCC, UL, RoHS, WEEE |
