NVR308-X Series 16/32/64CH 4K 8SATA Guard Viewer NVR
 | NVR308-X Series 16/32/64CH NVRChannels: 16/32/64-ch Bandwidth: 384Mbps Storage: 8 SATA, up to 10TB each, RAID 0/1/5/6/10 Output: 2×HDMI 4K + VGA AI: VCA, SIP, People Counting APP: Guard Viewer / Guard Live |
Features
*Support Ultra H.265/H.265/H.264 video formats
*16/32/64-channel IP camera input
*Supports ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
*2-ch HDMI (4K) + 1-ch VGA independent outputs
*Up to 12 Megapixels resolution recording
*Support RAID 0, 1, 5, 6, 10 for storage redundancy
*8 SATA HDDs, up to 10TB per HDD; eSATA expansion
*Support N+1 Hot spare
*ANR technology for offline storage reliability
*VCA: Intrusion Detection, Cross Line, People Counting, SIP
*Support Mobile APP: Guard Viewer (iOS, Android); PC: Guard Station
*Support ODM/OEM customization (Manufacturer Name, Model, Logo)
*Support cloud upgrade
Specifications
Video/Audio Input | Description |
IP Video Input | NVR308-16X: 16-ch / NVR308-32X: 32-ch / NVR308-64X: 64-ch |
Two-way Audio Input | 1-ch, RCA |
Network | Description |
Incoming Bandwidth | 384 Mbps |
Outgoing Bandwidth | 384 Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
Video/Audio Output | Description |
HDMI Output | HDMI1/HDMI2: 4K (3840×2160)/30Hz, 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
VGA Output | 1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
Audio Output | 1-ch, RCA |
Audio Compression | G.711A, G.711U |
Recording | Description |
Decoding Format | Ultra 265, H.265, H.264 |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Synchronous Playback | 16-ch (16X/32X) / up to 64-ch (64X) |
Liveview Display | 1/4/6/8/9/16/25/36 (up to 64 on HDMI for 64X) |
Smart / AI | Description |
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter/Leave Area, Defocus, Scene Change, Object Left/Removed, Auto Tracking, Vehicle Control |
Smart Intrusion Prevention (SIP) | 16-ch |
People Counting | People Flow Counting, Crowd Density Monitoring |
Storage | Description |
SATA Interfaces | 8 SATA interfaces |
Capacity per HDD | Up to 10TB |
eSATA | 1 eSATA interface |
RAID | RAID 0, 1, 5, 6, 10 |

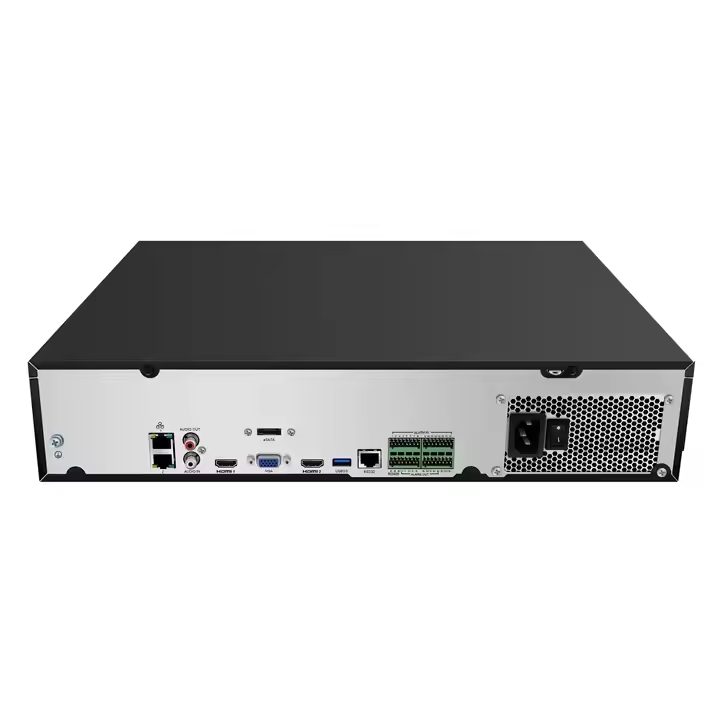

External Interface | Description |
Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet |
USB | Front: 2×USB2.0; Rear: 1×USB3.0 |
RS232 / RS485 | 1 / 1 |
Alarm In / Out | 16-ch / 4-ch |
General | Description |
Power Supply | 100~240 VAC |
Power Consumption (no HDD) | ≤25W |
Working Temperature | -10°C ~ +55°C |
Working Humidity | ≤90% RH (non-condensing) |
Dimensions (W×D×H) | 442mm×426mm×89mm |
Weight (no HDD) | ≤5.7 kg |
Certification | CE, FCC, UL, RoHS, WEEE |
