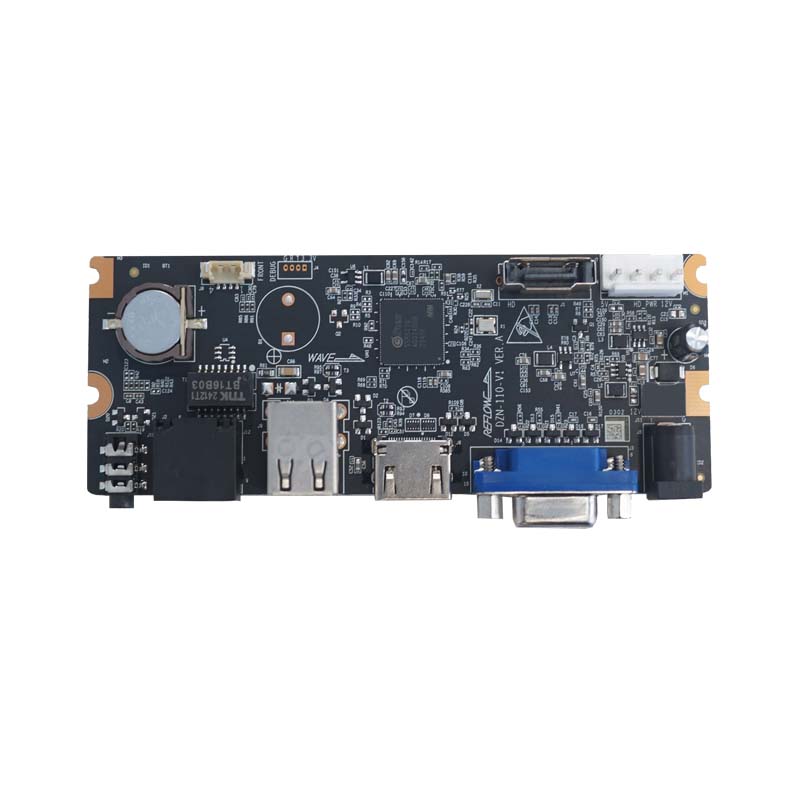

NUE3110 10-Channel 4K NVR Board – Guard Viewer OEM Module
 | NUE3110 10CH 4K NVR BoardIP Channels: 10-ch Decoding: 1×4K@30, 4×5MP@25, 6×1080p@30 Bandwidth: 64 Mbps in / 48 Mbps out SATA: 1 SATA, max 10 TB Output: HDMI 4K + VGA simultaneous AI: Human Body/Vehicle Detection APP: Guard Viewer/Guard Live (iOS / Android) |
Features
*Support Ultra 265/H.265/H.264 video formats
*M-Star SSR621Q platform
*10-channel live view; playback: 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080p@30, 8×720p@30, 10×D1@30
*Incoming/outgoing bandwidth: 64/48 Mbps
*HDMI 4K (3840×2160@30Hz) and VGA simultaneous output
*1 SATA HDD up to 10 TB
*AI smart detection: Human Body Detection, Motion Detection, Video Loss
*Mobile APP: Guard Viewer (iOS & Android); PC client: Guard Station
*Support Uniview/UNV private protocol: Face Recognition, Perimeter Protection, Mixed-traffic Detection
*Auto-add major 3rd-party cameras: Hikvision, XM, ANJ, ENZ, HS (ONVIF Profile S/G/T & RTSP)
*Cross-public-network remote debugging & NVR configuration maintenance
*Web browser access; SDK development support
*OEM/ODM customization: brand name, model number, web/boot logo, APP
*Compact low-power design: ≤ 3 W (without HDD)
Specifications
Decoding | Description |
Decoding Format | H.265, H.264 |
Decoding Capability | 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080p@30, 8×720p@30, 10×D1@30 |
Audio Compression | G.711A, G.711U |
Network | Description |
Incoming Bandwidth | 64 Mbps |
Outgoing Bandwidth | 48 Mbps |
Video/Audio Input | Description |
IP Video Input | 10-ch |
Video/Audio Output | Description |
HDMI Output | HDMI: 1024×768/60Hz, 1280×720/60Hz, 1280×1024/60Hz, 1600×1200/60Hz, 1920×1080/50Hz, 1920×1080/60Hz, 4K (3840×2160)/30Hz |
VGA Output | VGA: 1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
3.5mm Audio Output | 1-ch |
Live View Display | 1/4/6/8/9/10 |
Corridor Mode Screen | 3/4/5/7/9/10 |
Snapshot | Description |
FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
Recording | Description |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
Synchronous Playback | 10-ch |
Alarm | Description |
General Alarm | Motion Detection; Human Body Detection; Video Loss; Alarm Input |
Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
Hard Disk | Description |
SATA | 1 SATA interface |
Capacity | Up to 10 TB per HDD |
External Interface | Description |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB | USB2.0 |
General | Description |
Power Supply | DC 12V / 1.5A |
Power Consumption (without HDD) | ≤ 3 W |
Working Temperature | -10°C ~ +55°C |
Working Humidity | ≤ 90% RH (non-condensing) |
