N804 8MP Smart Dual Light AI Human & Vehicle Detection SSC339G IMX415

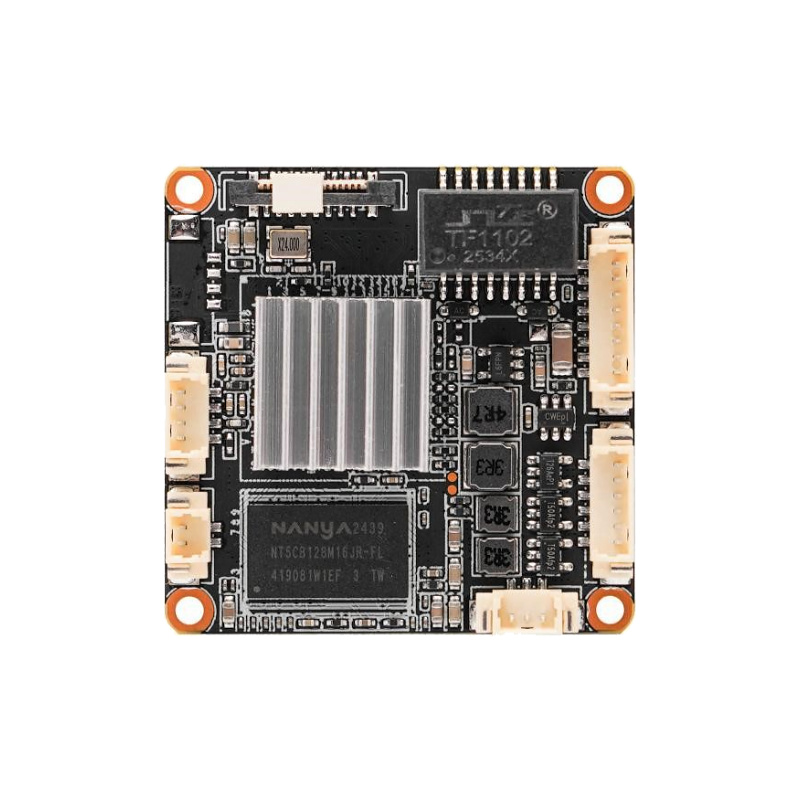

N804 DSP side
N804 DSP side

N804 8MP Smart Dual Light AI Human & Vehicle Detection SSC339G IMX415


Image Sensor: 1/2.8" 8MP Sony IMX415 CMOS
Solution: SSC339G
Encoding: H.264/H.265/MJPEG
Main Stream: 30fps@8MP(3840x2160)(default)/6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Light Mode: Smart(dual-light) / IR / White light, adjustable
Audio: G.711-u/G.711-a/AAC, AEC
ONVIF: 23.12 compatible (profile S G T M)
Power: 12 VDC ± 10% / < 2 W
Get a Quote

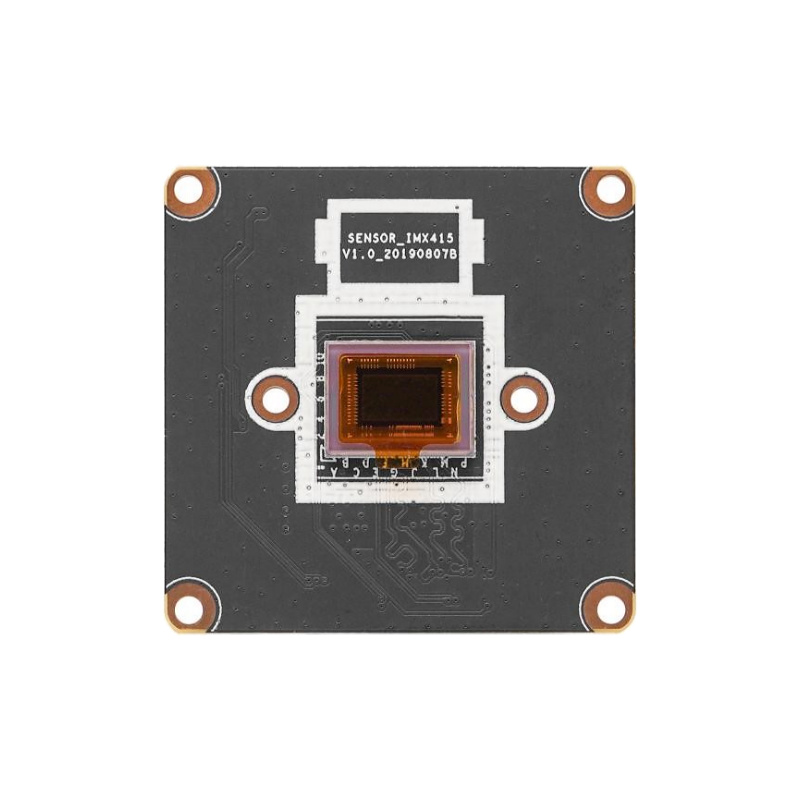

N804 SENSOR side

Features

★ Video Standard: H.264/H.265/MJPEG
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Face Detection: Yes, (1-5 meters)
★ Storage Type: Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE

Specifications

ModelN804
Camera
Image Sensor1/2.8" 8MP Sony IMX415 CMOS
Soc ChipSigmastar SSC339G
Effective Pixels3840(H)×2160 (V)
Exposure ShutterAUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable
Day/NightAuto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image AdjustBrightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White BalanceAWB/MWB
WDRYes
Light ModeSmart(dual-light) / IR / White light, adjustable
Light ControlAuto/Manual, Brightness level (0-100%) adjustable
DNR2D/3D DNR
Encode
Video StandardH.264/H.265/MJPEG
Video ResolutionMain Stream:
30fps@8MP(3840x2160)(default)/6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
Third stream: 10fps@720P(default),30@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360)
(*Note:MJPEG max 1080P)
Video BitratesSub stream: 64kbps-8Mbps
Sub stream: 64kbps-2048kbps
VBR/CBR , quality(1-9), GOP(1-128)
SnapshotMain stream(HD)/Sub Stream(SD) snapshot
Image Rotation0 / 90 / 180 / 270 degree adjustable
Border CropX crop, Y crop
Image Mirrorhorizon / vertical / horizon&vertical adjustable
OSD OverlayFont size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask4 areas
Region of InterestROI: Each stream support 8 areas
Audio StandardG.711-u/G.711-a/AAC, AEC
MicYes
SpeakerNo
Led
IR LedYes
White LedYes
Smart ControlYes
Lens
Focal lengthfixed Lens/AF Lens
IR-CUT fixed positionL= 20mm, ID=2.0mm
Language
LanguagesEnglish, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc.
Smart Detection
Motion DetectionYes
Digital IO Alarm1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Human Vehicle DetectionYes, (2-20 meters)
Cross Line DetectionYes, 4 lines
Perimeter protectionYes, 4 areas
Face DetectionYes, (1-5 meters)
Target Detection TypeHuman Shape, vehicle, non-motor vehicle, Pet
Trigger Action LinkageSnapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS)
Simultaneous DetectionMaximum 16 targets simultaneous detection
Storage TypeSchedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
Reset ButtonYes (with reset voice)
Network Services
ProtocolHTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address FilteringYes (Allow list, Deny list)
P2P Mobile APPAndroid, IOS
Web AccessIE, Firefox, Chrome, Edge, Safari, etc.
(Windows/Linux/Mac/Chromebook/Tablet/Mobile phone)
PC ToolWindows, Mac
ONVIF23.12 compatible (profile S G T M)
General
Network Port1-RJ45, 100Mbps, POE
Power Supply12 VDC ± 10%
Power Consumption< 2 W
Operating Temp.-20℃-(+60)℃, 10%-90%RH
Suggest users5
Optional Peripheral Equipment
IR-CUT5-12V, 25-60Ω, ID:2.0mm
Condenser Mic28 - 30 dB
Fill-in LedIR/White , pwm control
Red&blue Alarm lightIO-out control
Reset buttonYes (Active Low)
AF Lens ControlYes
Extend BoardAlarm-in/Alarm-out/Memory card/Reset

Connector Definition and Description

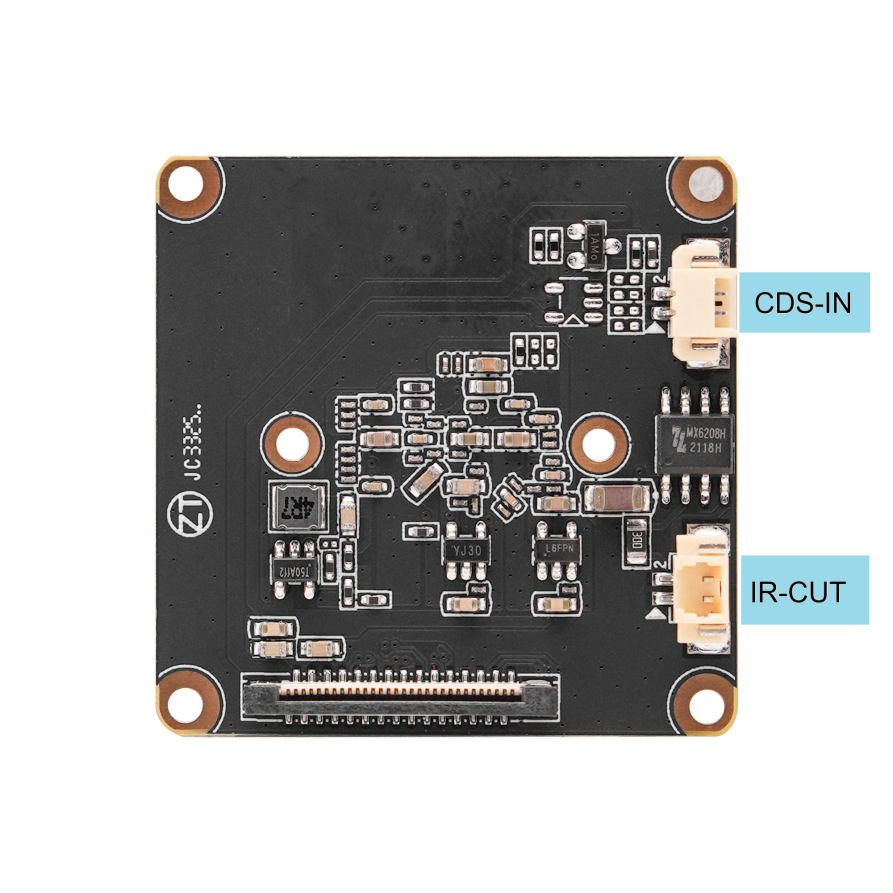

N804 connector and wiring diagram 1

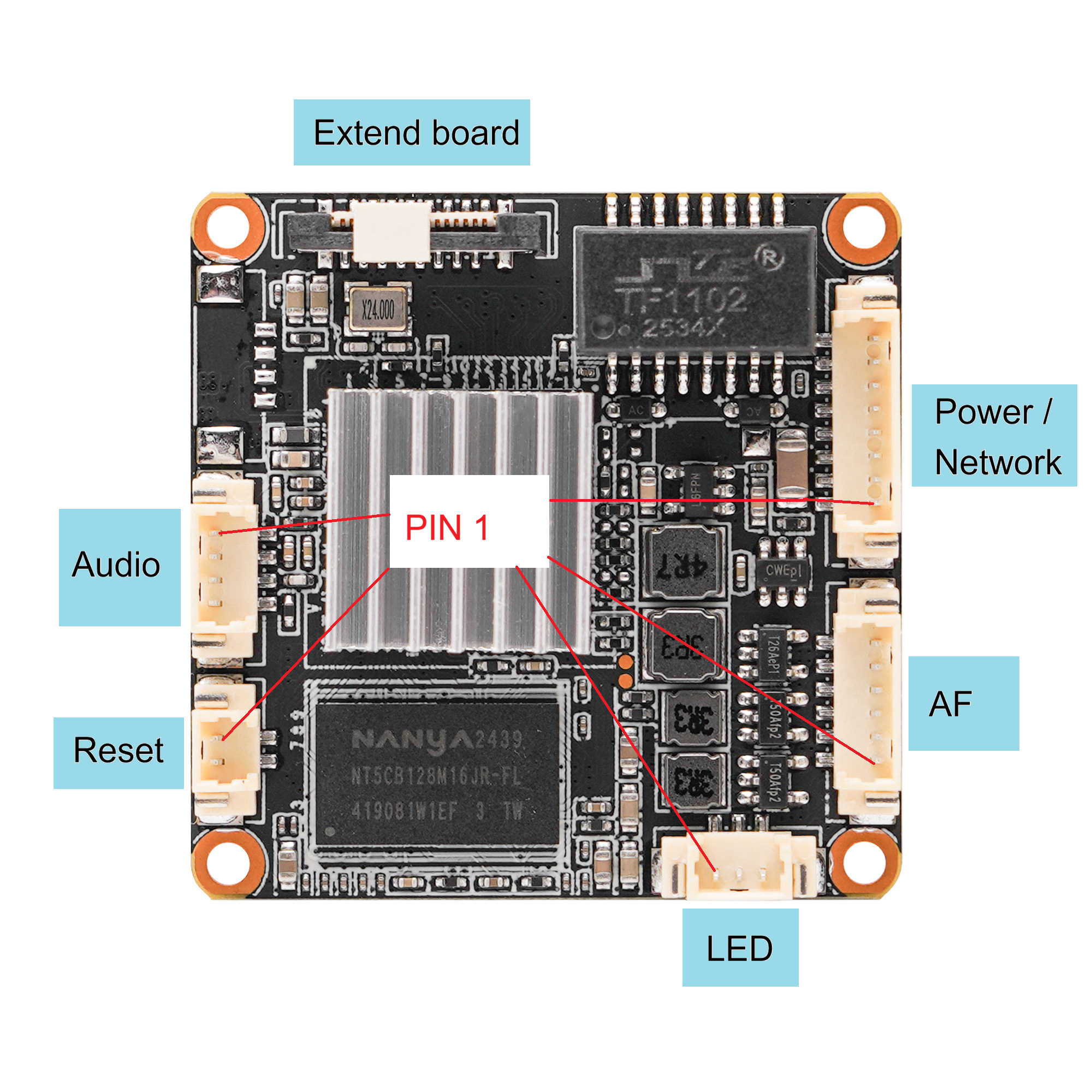

N804 connector and wiring diagram 2
  Functions  Index  Pin definition  Description
  CDS-IN  1  IR_DET  CDS in (passive mode, 1.5V-12V)
  2  GND  GND
  IR-CUT
  		  1  AOUT  IR-CUT+ (5-12V,25-60Ω)
  2  BOUT  IR-CUT- (5-12V,25-60Ω)
  Power/Network  1  DC 12V+  DC 12V+ (9.5V-15V)
  2  GND  GND
  3  RJ45_6  Network_RJ6
  4  RJ45_3  Network_RJ3
  5  RJ45_2  Network_RJ2
  6  RJ45_1  Network_RJ1
  7  Reset  Reset (Active Low)
  8  LED1Link active (3.3V)
  Mic  1  MIC+Mic (Condenser Mic)
  2  MIC-
  IO_OUT  1  IO_OUT  Red&Blue Led (3.3V)
  2  GND  GND
  LED board  1  GND  GND
  2  PWM0  IR led control (0-3.3V)
  3  PWM1  White led control (0-3.3V)
  
  Audio out
  		  1  GND  GND
  2  L_OUT  Audio out
  3  L_OUT  Audio input
  4  GND  GND
  AF Lens  1  GND  GND
  2  UART_TX  UART_TX
  3  UART_RX  UART_RX
  4  NC  
  5  NC  
    6  SPK_EN  Amplifier IO (3.3V)
  Extend
  Board		  1  IOOUT  IO Output
  2  IOINPUT  IO Output
  3  SD_DET  SD detect
  4  SD_D1  
  5  SD_D0  
  6  GND  
  7  SD_CLK  
  8  GND  GND
  9  SD_CMD  
  10  SD_D3  
  11  SD_D2  
  12  VDD  3.3V
  13  RESET  Reset
  14  V3.3  V3.3
  15  V3.3  V3.3
  16  V3.3  V3.3
