N803 8MP Smart Dual Light VCA AI Human & Vehicle Detection SSC378QE IMX415
| N803 8MP Smart Dual Light VCA AI Human & Vehicle Detection SSC378QE IMX415Image Sensor: 1/2.8" 8MP Sony IMX415 CMOS Solution: SSC378QE Encoding: H.264/H.265/MJPEG Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Light Mode: Smart(dual-light) / IR / White light, adjustable Audio: G.711-u/G.711-a/AAC, AEC ONVIF: 23.12 compatible (profile S G T M) Power: 12 VDC ± 10% / < 2 W |
Features
★ Video Standard: H.264/H.265/MJPEG
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Face Detection: Yes, (1-5 meters)
★ Support Face comparision with our IQ series NVR
★ Storage Type: Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Face Detection: Yes, (1-5 meters)
★ Support Face comparision with our IQ series NVR
★ Storage Type: Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE
Specifications
| Model | N803 |
| Camera | |
|---|---|
| Image Sensor | 1/2.8" 8MP Sony IMX415 CMOS |
| Soc Chip | Sigmastar SSC378QE |
| Effective Pixels | 3840(H)×2160 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | Yes |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265/MJPEG |
| Video Resolution | Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) *Third stream: 10fps@720P(default),30@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) -- (when third stream customized enabled, Face Detection and Perimeter protection will be disabled) (*Note:MJPEG max 1080P) |
| Video Bitrates | Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Snapshot | Main stream(HD)/Sub Stream(SD) snapshot |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC, AEC |
| Mic | Yes |
| Speaker | Yes |
| Led | |
| IR Led | Yes |
| White Led | Yes |
| Smart Control | Yes |
| Lens | |
| Focal length | fixed Lens/AF Lens |
| IR-CUT fixed position | L= 20mm, ID=2.0mm |
| Language | |
| Languages | English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | Yes, (1-5 meters) |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px) |
| Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS) |
| Reset Button | Yes (with reset voice) |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 2 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
| Suggest users | 5 |
| Optional Peripheral Equipment | |
| IR-CUT | 5-12V, 25-60Ω, ID:2.0mm |
| Condenser Mic | 28 - 30 dB |
| Fill-in Led | IR/White , pwm control |
| Red&blue Alarm light | IO-out control |
| Reset button | Yes (Active Low) |
| AF Lens Control | Yes |
| Extend Board | Alarm-in/Alarm-out/Memory card/Reset |

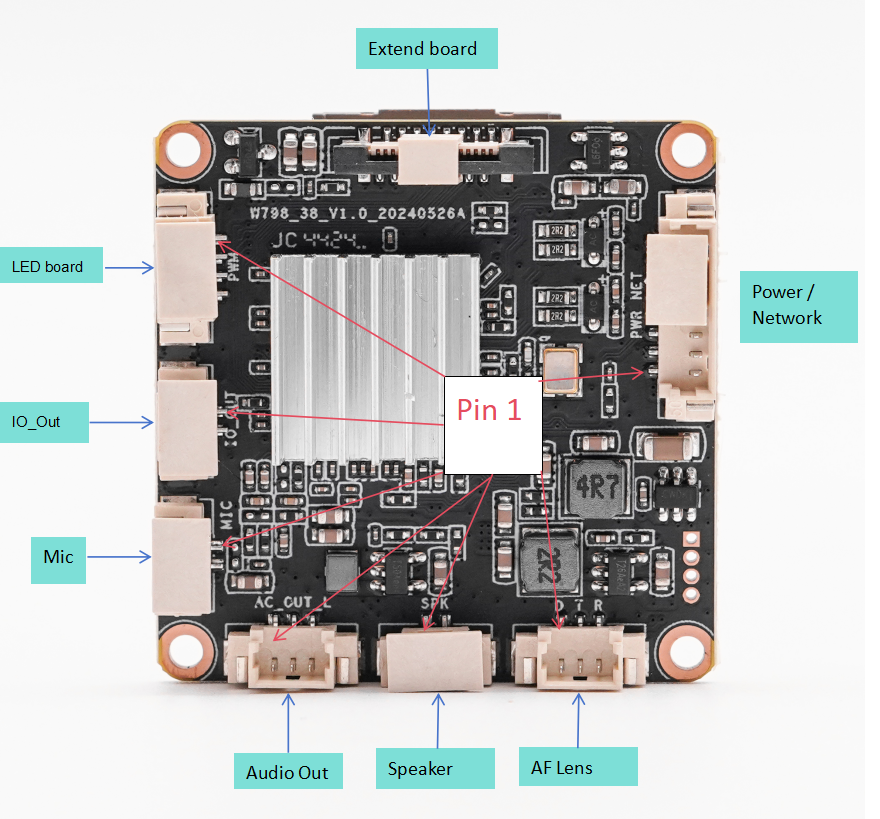

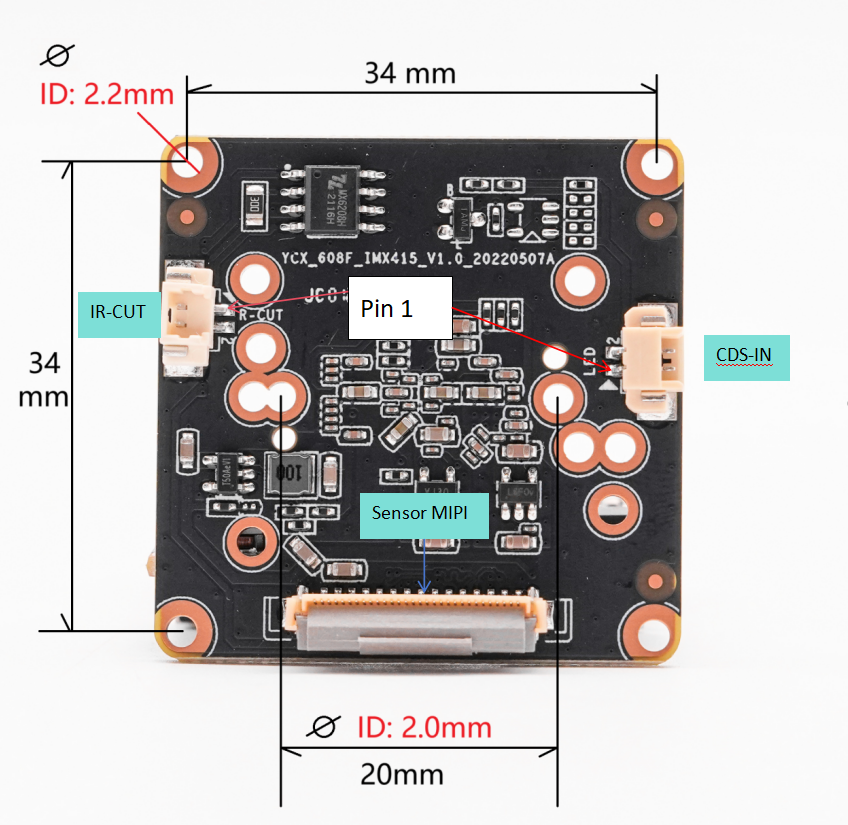

Connector Definition and Description
| Functions | Index | Pin definition | Description |
|---|---|---|---|
| CDS-IN | 1 | IR_DET | CDS in (passive mode, 1.5V-12V) |
| 2 | GND | GND | |
| IO_OUT | 1 | IO_OUT | Red&Blue Led (3.3V) |
| 2 | GND | GND | |
| Power/Network | 1 | DC 12V+ | DC 12V+ (9.5V-15V) |
| 2 | GND | GND | |
| 3 | RJ45_6 | Network_RJ6 | |
| 4 | RJ45_3 | Network_RJ3 | |
| 5 | RJ45_2 | Network_RJ2 | |
| 6 | RJ45_1 | Network_RJ1 | |
| 7 | Reset | Reset (Active Low) | |
| 8 | LED1 | Link active (3.3V) | |
| Mic | 1 | MIC+ | Mic (Condenser Mic) |
| 2 | MIC- | ||
| IR-CUT | 1 | AOUT | IR-CUT+ (5-12V,25-60Ω) |
| 2 | BOUT | IR-CUT- (5-12V,25-60Ω) | |
| Speaker | 1 | SPK+ | Speaker+ (Max:2W) |
| 2 | SPK- | Speaker- (Max:2W) | |
| LED board | 1 | +12V | 12Vout |
| 2 | GND | GND | |
| 3 | PWM1 | IR led control (0-3.3V) | |
| 4 | PWM0 | White led control (0-3.3V) | |
| Audio out | 1 | GND | GND |
| 2 | L_OUT | Audio out | |
| 3 | SPK_EN | Amplifier IO (3.3V) | |
| AF Lens | 1 | GND | GND |
| 2 | UART_TX | UART_TX | |
| 3 | UART_RX | UART_RX | |
| Extend Board | 1 | IOOUT | IO Output |
| 2 | IOINPUT | IO Output | |
| 3 | SD_DET | SD detect | |
| 4 | SD_D1 | ||
| 5 | SD_D0 | ||
| 6 | GND | ||
| 7 | SD_CLK | ||
| 8 | GND | GND | |
| 9 | SD_CMD | ||
| 10 | SD_D3 | ||
| 11 | SD_D2 | ||
| 12 | VDD | 3.3V | |
| 13 | RESET | Reset | |
| 14 | V3.3 | V3.3 | |
| 15 | V3.3 | V3.3 | |
| 16 | V3.3 | V3.3 |
SSC378QE OpenIPC Compatibility
N803 is a Remoteyes IPC camera module based on SigmaStar SSC378QE with IMX415.
Can N803 run OpenIPC?
OpenIPC has an upstream SSC378QE firmware build. OpenIPC Waybeam includes SSC378QE Maruko support and IMX415 driver work. N803 can be assessed against that development path, with its own board initialization and firmware integration still to be validated.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
