Remoteyes IP Camera Module

N802 8MP Smart Dual Light VCA AI Human & Vehicle Detection SSC378DE IMX415

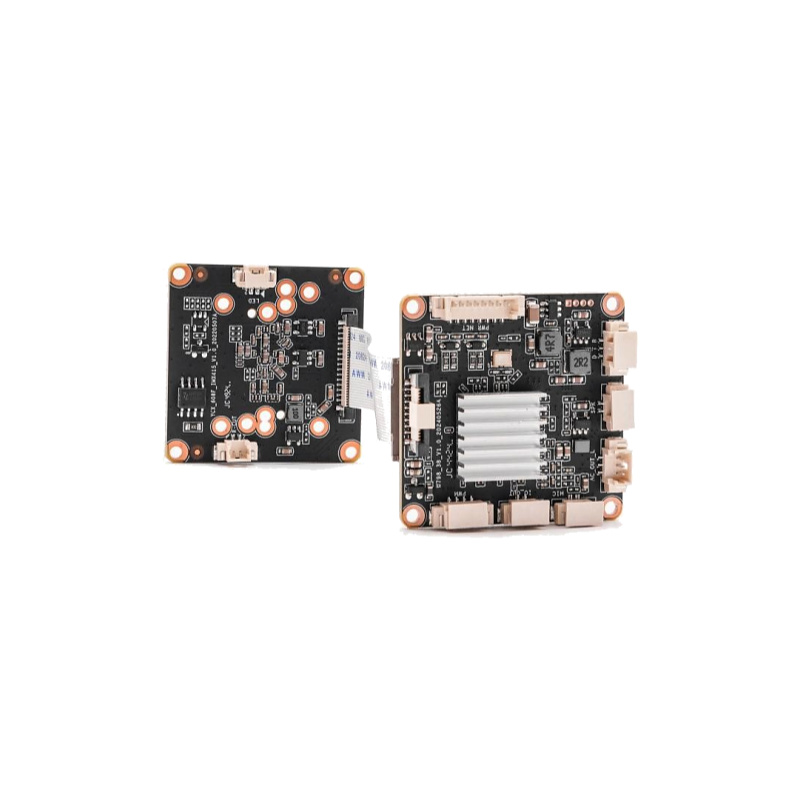

N802 DSP side
N802 DSP side

N802 8MP Smart Dual Light VCA AI Human & Vehicle Detection SSC378DE IMX415


Image Sensor: 1/2.8" 8MP Sony IMX415 CMOS
Solution: SSC378DE
Encoding: H.264/H.265
Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Light Mode: Smart(dual-light) / IR / White light, adjustable
Audio: G.711-u/G.711-a/AAC, AEC
ONVIF: 23.12 compatible (profile S G T M)
Power: 12 VDC ± 10% / < 2 W
Get a Quote

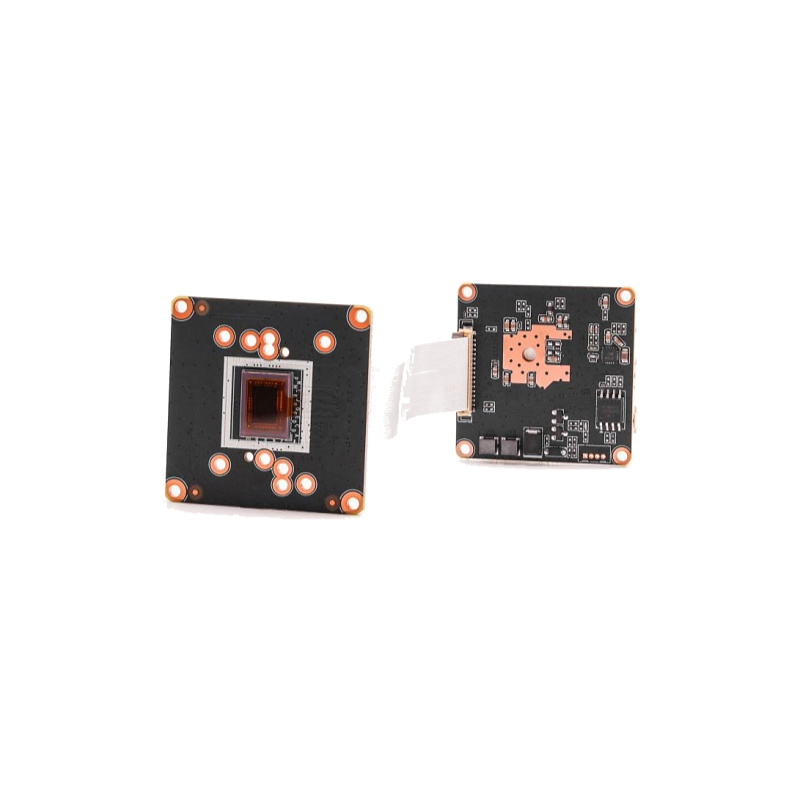

N802 SENSOR side

Features

★ Video Standard: H.264/H.265
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: 1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
★ Cross Line Detection: Yes, (2-20 meters)
★ Perimeter protection: Yes, 4 lines
★ Face Detection: Yes, 4 areas
★ Support Face comparision with our IQ series NVR
★ Storage Type: Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE

Specifications

ModelN802
Camera
Image Sensor1/2.8" 8MP Sony IMX415 CMOS
Soc ChipSigmastar SSC378DE
Effective Pixels3840(H)×2160 (V)
Exposure ShutterAUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable
Day/NightAuto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image AdjustBrightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White BalanceAWB/MWB
WDRYes
Light ModeSmart(dual-light) / IR / White light, adjustable
Light ControlAuto/Manual, Brightness level (0-100%) adjustable
DNR2D/3D DNR
Encode
Video StandardH.264/H.265
Video ResolutionMain Stream:
20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
Video BitratesSub stream: 64kbps-8Mbps
Sub stream: 64kbps-2048kbps
VBR/CBR , quality(1-9), GOP(1-128)
Image RotationSub Stream(SD) snapshot
Border Crop0 / 90 / 180 / 270 degree adjustable
Image MirrorX crop, Y crop
OSD Overlayhorizon / vertical / horizon&vertical adjustable
Privacy MaskFont size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Region of Interest4 areas
Audio StandardG.711-u/G.711-a/AAC, AEC
MicYes
SpeakerYes
Led
IR LedYes
White LedYes
Smart ControlYes
Lens
Focal lengthfixed Lens/AF Lens
IR-CUT fixed positionL= 20mm, ID=2.0mm
Language
LanguagesEnglish, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc.
Smart Detection
Motion DetectionYes
Human Vehicle Detection1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Cross Line DetectionYes, (2-20 meters)
Perimeter protectionYes, 4 lines
Face DetectionYes, 4 areas
Target Detection TypeYes, (1-5 meters)
Trigger Action LinkageHuman Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px)
Simultaneous DetectionSnapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS)
Storage TypeSchedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
Reset ButtonYes (with reset voice)
Network Services
ProtocolHTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address FilteringYes (Allow list, Deny list)
P2P Mobile APPAndroid, IOS
Web AccessIE, Firefox, Chrome, Edge, Safari, etc.
(Windows/Linux/Mac/Chromebook/Tablet/Mobile phone)
PC ToolWindows, Mac
ONVIF23.12 compatible (profile S G T M)
General
Network Port1-RJ45, 100Mbps, POE
Power Supply12 VDC ± 10%
Power Consumption< 2 W
Operating Temp.-20℃-(+60)℃, 10%-90%RH
Suggest users5
Optional Peripheral Equipment
IR-CUT5-12V, 25-60Ω, ID:2.0mm
Condenser Mic28 - 30 dB
Fill-in LedIR/White , pwm control
Red&blue Alarm lightIO-out control
Reset buttonYes (Active Low)
AF Lens ControlYes
Extend BoardAlarm-in/Alarm-out/Memory card/Reset

Connector Definition and Description

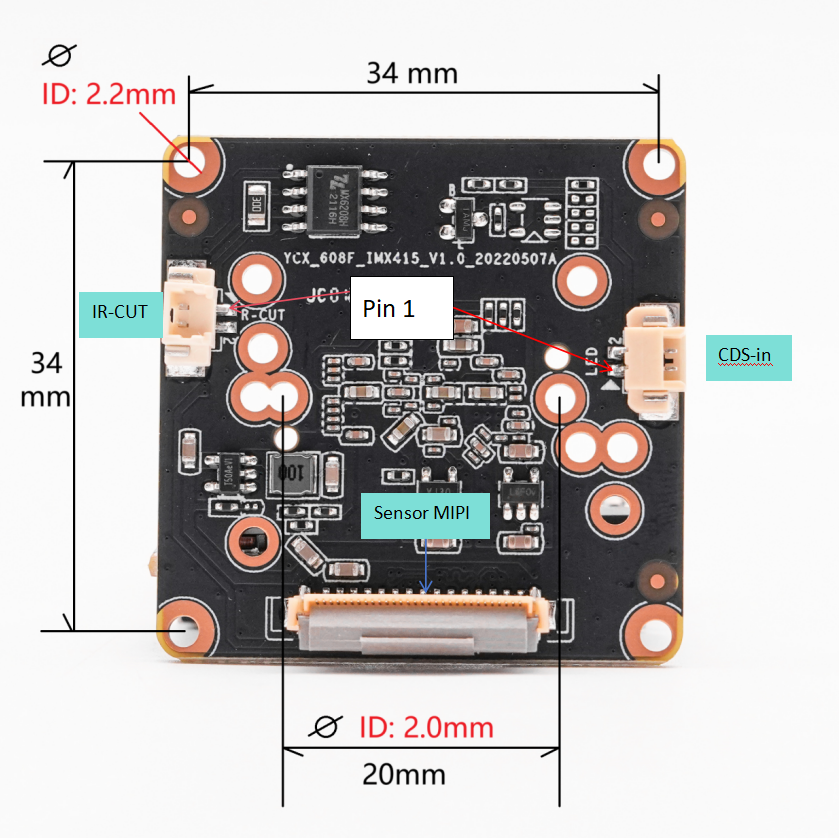

N802 connector and wiring diagram 1

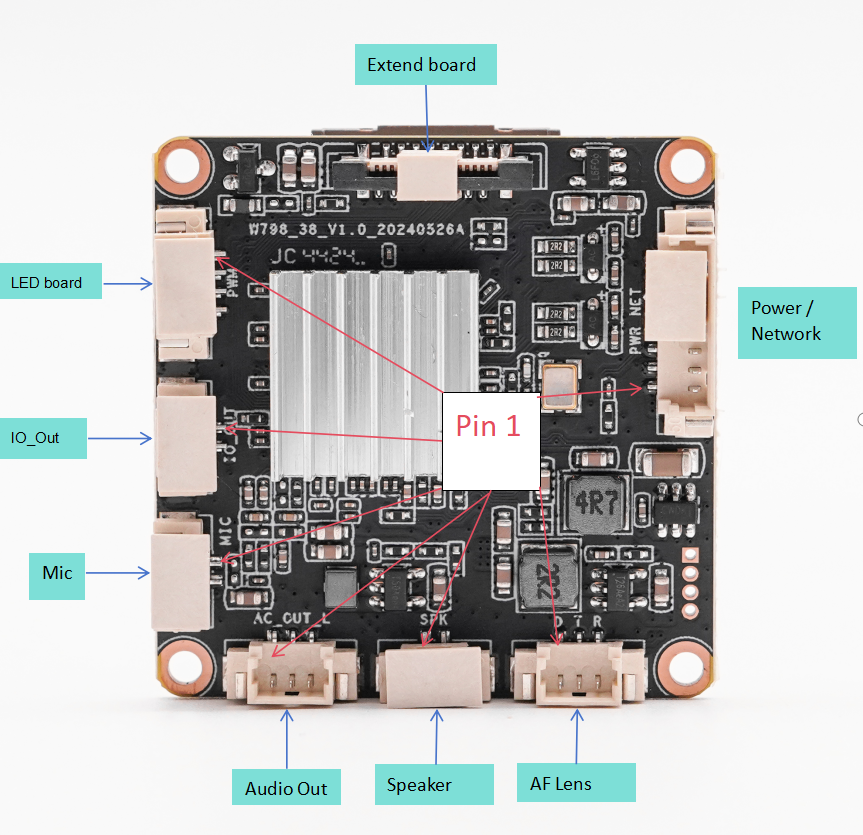

N802 connector and wiring diagram 2
  Functions  Index  Pin definition  Description
  CDS-in  1  IR_DET  CDS in (passive mode, 1.5V-12V)
  2  GND  GND
  IO_OUT  1  IO_OUT  Red&Blue Led (3.3V)
  2  GND  GND
  Power/Network  1  DC 12V+  DC 12V+ (9.5V-15V)
  2  GND  GND
  3  RJ45_6  Network_RJ6
  4  RJ45_3  Network_RJ3
  5  RJ45_2  Network_RJ2
  6  RJ45_1  Network_RJ1
  7  Reset  Reset (Active Low)
  8  LED1Link active (3.3V)
  Mic  1  MIC+Mic (Condenser Mic)
  2  MIC-
  IR-CUT  1  AOUT  IR-CUT+ (5-12V,25-60Ω)
  2  BOUT  IR-CUT- (5-12V,25-60Ω)
  Speaker  1  SPK+  Speaker+ (Max:2W)
  2  SPK-  Speaker- (Max:2W)
  LED board  1  +12V  12Vout
  2  GND  GND
  3  PWM1  IR led control (0-3.3V)
  4  PWM0  White led control (0-3.3V)
  
  Audio out
  		  1  GND  GND
  2  L_OUT  Audio out
  3  SPK_EN  Amplifier IO (3.3V)
  AF Lens  1  GND  GND
  2  UART_TX  UART_TX
  3  UART_RX  UART_RX
  Extend
  Board		  1  IOOUT  IO Output
  2  IOINPUT  IO Output
  3  SD_DET  SD detect
  4  SD_D1  
  5  SD_D0  
  6  GND  
  7  SD_CLK  
  8  GND  GND
  9  SD_CMD  
  10  SD_D3  
  11  SD_D2  
  12  VDD  3.3V
  13  RESET  Reset
  14  V3.3  V3.3
  15  V3.3  V3.3
  16  V3.3  V3.3

SSC378DE OpenIPC Compatibility

N802 is a Remoteyes IPC camera module based on SigmaStar SSC378DE with IMX415.

Can N802 run OpenIPC?

OpenIPC has an upstream SSC378DE firmware build. The inspected infinity6c loader contains an IMX415 sensor entry. This is a useful software starting point for N802, but it does not verify the fitted PCB, flash layout or image-tuning profile.

OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.

Evidence reviewed: 16 September 2026. OpenIPC technical reference.
