N800 8MP Smart Dual Light AI Human & Vehicle Detection SSC338Q IMX415

N800 8MP Smart Dual Light AI Human & Vehicle Detection SSC338Q IMX415

Image Sensor: 1/2.8" 8MP Sony IMX415 CMOS
Solution: SSC338Q
Encoding: H.264/H.265/MJPEG
Main Stream: 20fps@8MP(3840x2160)(default),25fps@6MP(3072x2048),30fps@5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Light Mode: Smart(dual-light) / IR / White light, adjustable
Audio: G.711-u/G.711-a/AAC, AEC
ONVIF: 23.12 compatible (profile S G T M)
Power: 12 VDC ± 10% / < 8 W

Get a Quote

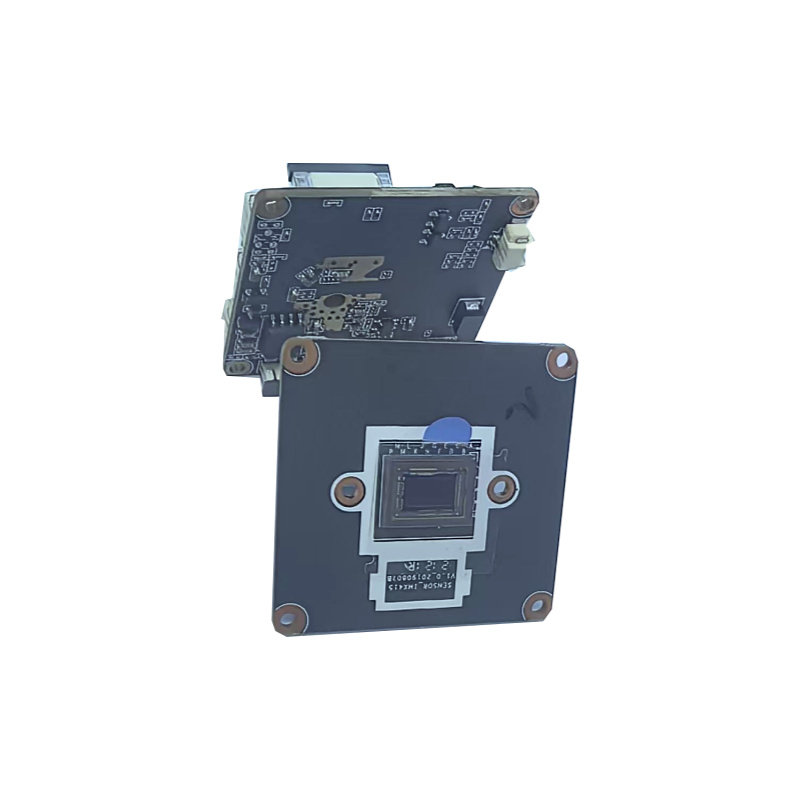

N800 SENSOR side

Features

★ Video Standard: H.264/H.265/MJPEG
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-15 meters)
★ Storage Type: Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS (NFS)
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE(IEEE802.3af)

Specifications

Camera
Model	N800
Image Sensor	1/2.8" 8MP Sony IMX415 CMOS
Soc Chip	Sigma star SSC338Q
Effective Pixels	3840(H)×2160 (V)
Exposure Shutter	AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable
Day/Night	Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image Adjust	Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White Balance	AWB/MWB
WDR	Yes
Light Mode	Smart(dual-light) / IR / White light, adjustable
Light Control	Auto/Manual, Brightness level (0-100%) adjustable
DNR	2D/3D DNR
Encode
Video Standard	H.264/H.265/MJPEG
Video Resolution	Main Stream: 20fps@8MP(3840x2160)(default),25fps@6MP(3072x2048),30fps@5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) (*Note:MJPEG max 1080P)
Video Bitrates	Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128)
Image Rotation	0 / 90 / 180 / 270 degree adjustable
Border Crop	X crop, Y crop
Image Mirror	horizon / vertical / horizon&vertical adjustable
OSD Overlay	Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask	4 areas
Region of Interest	ROI: Each stream support 8 areas
Audio Standard	G.711-u/G.711-a/AAC, AEC
Built-in Mic	Yes
Built-in Speaker	(optional)
Led
IR Led
White Led
Distance
Lens
Focal length	F1.6 2.8/3.6 mm fixed
FOV
Language
Languages	English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc.
Smart Detection
Motion Detection	Yes
Digital IO Alarm	1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Human Vehicle Detection	Yes, (2-15 meters)
Cross Line Detection	No
Perimeter protection	No
Face Detection	No
Target Detection Type	Human Shape, vehicle, non-motor vehicle
Trigger Action Linkage	Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS)
Simultaneous Detection	Maximum 5 targets simultaneous detection
Storage Type	Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS (NFS)
Reset Button	Yes (with reset voice)
Network Services
Protocol	HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address Filtering	Yes (Allow list, Deny list)
P2P Mobile APP	Android, IOS
Web Access	IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone)
PC Tool	Windows, Mac
ONVIF	23.12 compatible (profile S G T M)
General
Network Port	1-RJ45, 100Mbps, POE(IEEE802.3af)
Power Supply	12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-20℃-(+60)℃, 10%-90%RH

SSC338Q OpenIPC Compatibility

N800 is a Remoteyes IPC camera module based on SigmaStar SSC338Q with IMX415.

Can N800 run OpenIPC?

OpenIPC has an upstream SSC338Q firmware build.

OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
