N602 6MP Blacklight AI Human & Vehicle Detection SSC378DE IMX335

N602 6MP Blacklight AI Human & Vehicle Detection SSC378DE IMX335

Image Sensor: 1/2.8" 5MP Sony IMX335 CMOS
Solution: SSC378DE
Encoding: H.264/H.265/MJPEG
Main Stream: 30fps@6MP(3072x2048)/5MP(2592x1944)(default)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P
Light Mode: Smart(dual-light) / IR / White light, adjustable
Audio: G.711-u/G.711-a/AAC, AEC
ONVIF: 23.12 compatible (profile S G T M)
Power: 12 VDC ± 10% / < 2 W

Get a Quote

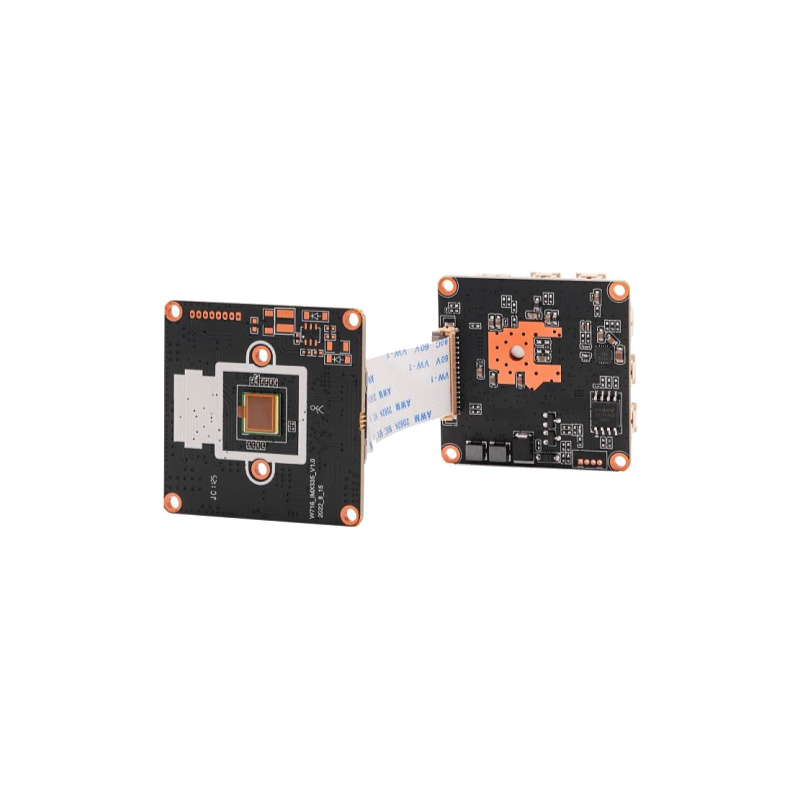

N602 SENSOR side

Model	N602
Camera
Image Sensor	1/2.8" 5MP Sony IMX335 CMOS
Soc Chip	Sigmastar SSC378DE
Effective Pixels	3072(H)×2048 (V)
Exposure Shutter	AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable
Day/Night	Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image Adjust	Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White Balance	AWB/MWB
WDR	Yes
Light Mode	Smart(dual-light) / IR / White light, adjustable
Light Control	Auto/Manual, Brightness level (0-100%) adjustable
DNR	2D/3D DNR
Encode
Video Standard	H.264/H.265/MJPEG
Video Resolution	Main Stream: 30fps@6MP(3072x2048)/5MP(2592x1944)(default)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) Third stream: 10fps@720P(default),30@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) -- (when third stream customized enabled, Face Detection and Perimeter protection will be disabled) (*Note:MJPEG max 1080P)
Video Bitrates	Sub stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128)
Snapshot	Main stream(HD)/Sub Stream(SD) snapshot
Image Rotation	0 / 90 / 180 / 270 degree adjustable
Border Crop	X crop, Y crop
Image Mirror	horizon / vertical / horizon&vertical adjustable
OSD Overlay	Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask	4 areas
Region of Interest	ROI: Each stream support 8 areas
Audio Standard	G.711-u/G.711-a/AAC, AEC
Mic	Yes
Speaker	Yes
Led
IR Led	Yes
White Led	Yes
Smart Control	Yes
Lens
Focal length	fixed Lens/AF Lens
IR-CUT fixed position	L= 20mm, ID=2.0mm
Language
Languages	English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc.
Smart Detection
Motion Detection	Yes
Digital IO Alarm	1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Human Vehicle Detection	Yes, (2-20 meters)
Cross Line Detection	Yes, 4 lines
Perimeter protection	Yes, 4 areas
Face Detection	Yes, (1-5 meters)
Target Detection Type	Human Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px)
Trigger Action Linkage	Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS)
Simultaneous Detection	Maximum 16 targets simultaneous detection
Storage Type	Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS(NFS)
Reset Button	Yes (with reset voice)
Network Services
Protocol	HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address Filtering	Yes (Allow list, Deny list)
P2P Mobile APP	Android, IOS
Web Access	IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone)
PC Tool	Windows, Mac
ONVIF	23.12 compatible (profile S G T M)
General
Network Port	1-RJ45, 100Mbps, POE
Power Supply	12 VDC ± 10%
Power Consumption	< 2 W
Operating Temp.	-20℃-(+60)℃, 10%-90%RH
Suggest users	5
Optional Peripheral Equipment
IR-CUT	5-12V, 25-60Ω, ID:2.0mm
Condenser Mic	28 - 30 dB
Fill-in Led	IR/White , pwm control
Red&blue Alarm light	IO-out control
Reset button	Yes (Active Low)
AF Lens Control	Yes
Extend Board	Alarm-in/Alarm-out/Memory card/Reset

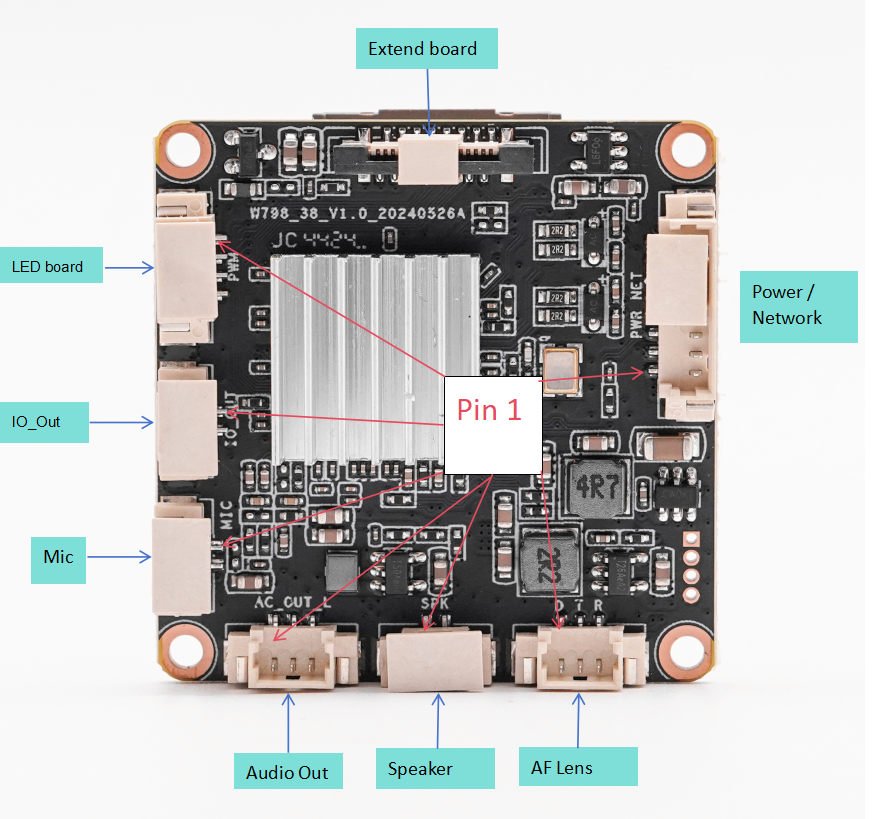

Functions	Index	Pin definition	Description

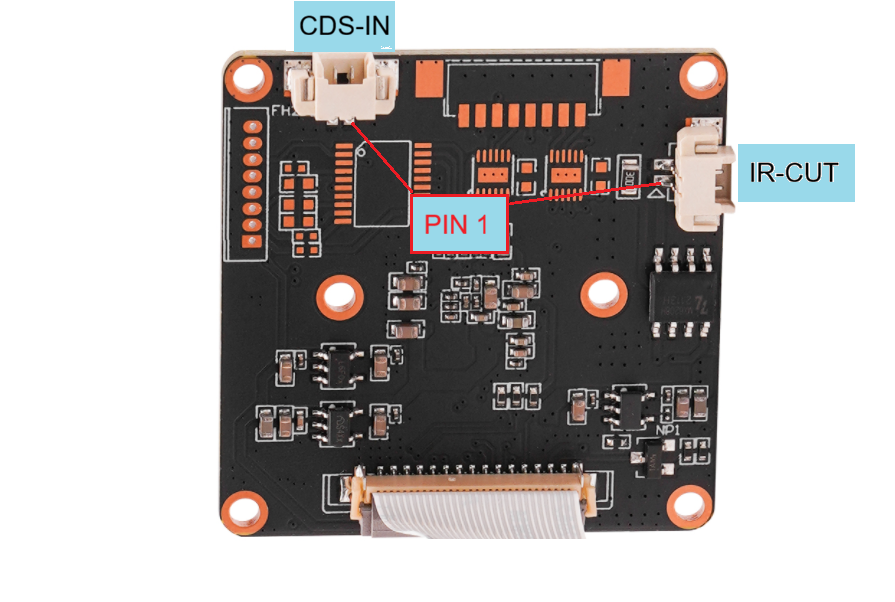

CDS-IN	1	IR_DET	CDS in (passive mode, 1.5V-12V)
CDS-IN	2	GND	GND
IO_OUT	1	IO_OUT	Red&Blue Led (3.3V)
IO_OUT	2	GND	GND
Power/Network	1	DC 12V+	DC 12V+ (9.5V-15V)
	2	GND	GND
	3	RJ45_6	Network_RJ6
	4	RJ45_3	Network_RJ3
	5	RJ45_2	Network_RJ2
	6	RJ45_1	Network_RJ1
	7	Reset	Reset (Active Low)
	8	LED1	Link active (3.3V)
Mic	1	MIC+	Mic (Condenser Mic)
Mic	2	MIC-	Mic (Condenser Mic)
IR-CUT	1	AOUT	IR-CUT+ (5-12V,25-60Ω)
IR-CUT	2	BOUT	IR-CUT- (5-12V,25-60Ω)
Speaker	1	SPK+	Speaker+ (Max:2W)
Speaker	2	SPK-	Speaker- (Max:2W)
LED board	1	+12V	12Vout
	2	GND	GND
	3	PWM1	IR led control (0-3.3V)
	4	PWM0	White led control (0-3.3V)
Audio out	1	GND	GND
	2	L_OUT	Audio out
	3	SPK_EN	Amplifier IO (3.3V)
AF Lens	1	GND	GND
	2	UART_TX	UART_TX
	3	UART_RX	UART_RX
Extend Board	1	IOOUT	IO Output
	2	IOINPUT	IO Output
	3	SD_DET	SD detect
	4	SD_D1
	5	SD_D0
	6	GND
	7	SD_CLK
	8	GND	GND
	9	SD_CMD
	10	SD_D3
	11	SD_D2
	12	VDD	3.3V
	13	RESET	Reset
	14	V3.3	V3.3
	15	V3.3	V3.3
	16	V3.3	V3.3

SSC378DE OpenIPC Compatibility

N602 is a Remoteyes IPC camera module based on SigmaStar SSC378DE with IMX335.

Can N602 run OpenIPC?

OpenIPC has an upstream SSC378DE firmware build. The inspected infinity6c loader contains an IMX335 sensor entry. This is a useful software starting point for N602, but it does not verify the fitted PCB, flash layout or image-tuning profile.

OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.

Evidence reviewed: 16 September 2026. OpenIPC technical reference.
