N501 5MP Smart Dual Light AI Human & Vehicle Detection SSC377 SC4336P
| N501 5MP Smart Dual Light AI Human & Vehicle Detection SSC377 SC4336PImage Sensor: 1/3" 5MP Smartsens SC4336P CMOS Solution: SSC377 Encoding: H.264/H.265 Main Stream: 25fps@5MP(default)/3MP(2304x1296)/1080P Light Mode: Smart(dual-light) / IR / White light, adjustable Audio: G.711-u/G.711-a/AAC, AEC ONVIF: 23.12 compatible (profile S G T M) Power: 12 VDC ± 10% / < 2 W |
Features
★ Video Standard: H.264/H.265
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Storage Type: Schedule/Trigger: Email, FTP
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE
Specifications
| Model | N501 |
| Camera | |
|---|---|
| Image Sensor | 1/3" 5MP Smartsens SC4336P CMOS |
| Soc Chip | Sigmastar SSC377 |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | No |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 25fps@5MP(default)/3MP(2304x1296)/1080P Sub stream: 30fps@QVGA(640x360)(default 25fps)/CIF(352x288) |
| Video Bitrates | Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Snapshot | Sub Stream(SD) snapshot |
| Image Rotation | No |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC, AEC |
| Mic | Yes |
| Speaker | Yes |
| Led | |
| IR Led | Yes |
| White Led | Yes |
| Smart Control | Yes |
| Lens | |
| Focal length | fixed Lens/AF Lens |
| IR-CUT fixed position | L= 20mm, ID=2.0mm |
| Language | |
| Languages | English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
| Smart Detection | |
| Motion Detection | Yes |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | No |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet |
| Trigger Action Linkage | Snapshot, Record, (Red-blue Led flash) optional, White LED Flash, Voice siren, Email, FTP |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Email, FTP |
| Reset Button | Yes (with reset voice) |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 2 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
| Suggest users | 2 |
| Optional Peripheral Equipment | |
| IR-CUT | 5-12V, 25-60Ω, ID:2.0mm |
| Condenser Mic | 28 - 30 dB |
| Fill-in Led | IR/White , pwm control |
| Red&blue Alarm light | IO-out control |
| Reset button | Yes (Active Low) |
| AF Lens Control | Yes |

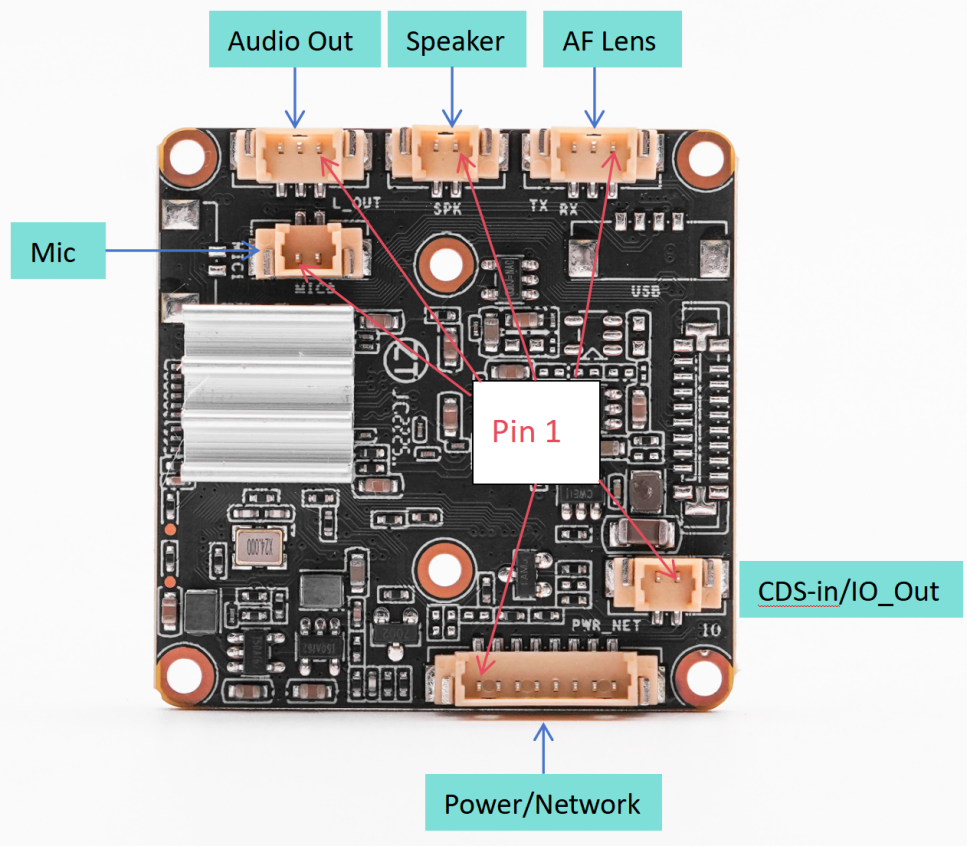

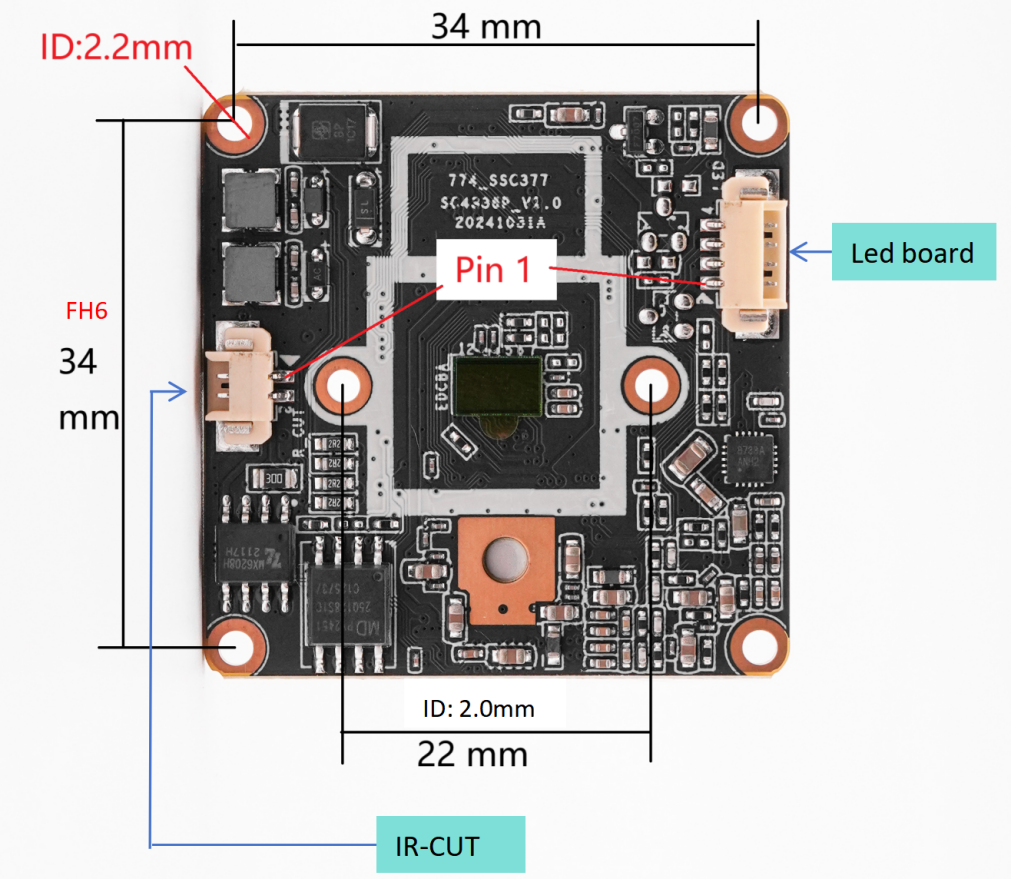

Connector Definition and Description
| Functions | Index | Pin definition | Description |
|---|---|---|---|
| CDS-in/IO_Out | 1 | IR_DET | CDS in (passive mode, 1.5V-12V) |
| 2 | IO_OUT | Red&Blue Led (3.3V) | |
| Power/Network | 1 | DC 12V+ | DC 12V+ (9.5V-15V) |
| 2 | GND | GND | |
| 3 | RJ45_6 | Network_RJ6 | |
| 4 | RJ45_3 | Network_RJ3 | |
| 5 | RJ45_2 | Network_RJ2 | |
| 6 | RJ45_1 | Network_RJ1 | |
| 7 | Reset | Reset (Active Low) | |
| 8 | LED1 | Link active (3.3V) | |
| Mic | 1 | MIC+ | Mic (Condenser Mic) |
| 2 | MIC- | ||
| IR-CUT | 1 | AOUT | IR-CUT+ (5-12V,25-60Ω) |
| 2 | BOUT | IR-CUT- (5-12V,25-60Ω) | |
| Speaker | 1 | SPK+ | Speaker+ (Max:2W) |
| 2 | SPK- | Speaker- (Max:2W) | |
| LED board | 1 | +12V | 12Vout |
| 2 | GND | GND | |
| 3 | PWM1 | IR led control (0-3.3V) | |
| 4 | PWM0 | White led control (0-3.3V) | |
| Audio out | 1 | GND | GND |
| 2 | L_OUT | Audio out | |
| 3 | SPK_EN | Amplifier IO (3.3V) | |
| AF Lens | 1 | GND | GND |
| 2 | UART_TX | UART_TX | |
| 3 | UART_RX | UART_RX |
SSC377 OpenIPC Compatibility
N501 is a Remoteyes IPC camera module based on SigmaStar SSC377 with SC4336P.
Can N501 run OpenIPC?
OpenIPC has an upstream SSC377 firmware build. Another SSC377 + SC4336P camera has a published video-initialization issue. N501 needs its own boot and video test; sharing the chipset and sensor is not sufficient evidence of a working OpenIPC image.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
