N401L 4MP Smart Dual Light AI Human & Vehicle Detection SSC373 SC2337P
| N401L 4MP Smart Dual Light AI Human & Vehicle Detection SSC373 SC2337PImage Sensor: 1/3" 4MP Smartsens SC2337P CMOS Solution: SSC373 Encoding: H.264/H.265 Main Stream: 30fps@4MP(2560x1440)/3MP(2304x1296)/1080P/720P Light Mode: Smart(dual-light) / IR / White light, adjustable Audio: G.711-u/G.711-a/AAC, AEC ONVIF: 23.12 compatible (profile S G T M) Power: 12 VDC ± 10% / < 2 W |
Features
★ Video Standard: H.264/H.265
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Storage Type: Schedule/Trigger: Email, FTP
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE
★ DNR: 2D/3D DNR
★ Light Mode: Smart(dual-light) / IR / White light, adjustable
★ Human Vehicle Detection: Yes, (2-20 meters)
★ Cross Line Detection: Yes, 4 lines
★ Perimeter protection: Yes, 4 areas
★ Storage Type: Schedule/Trigger: Email, FTP
★ P2P Mobile APP: Android, IOS; remoteyes
★ Network Port: 1-RJ45, 100Mbps, POE
Specifications
| Model | N401L |
| Camera | |
|---|---|

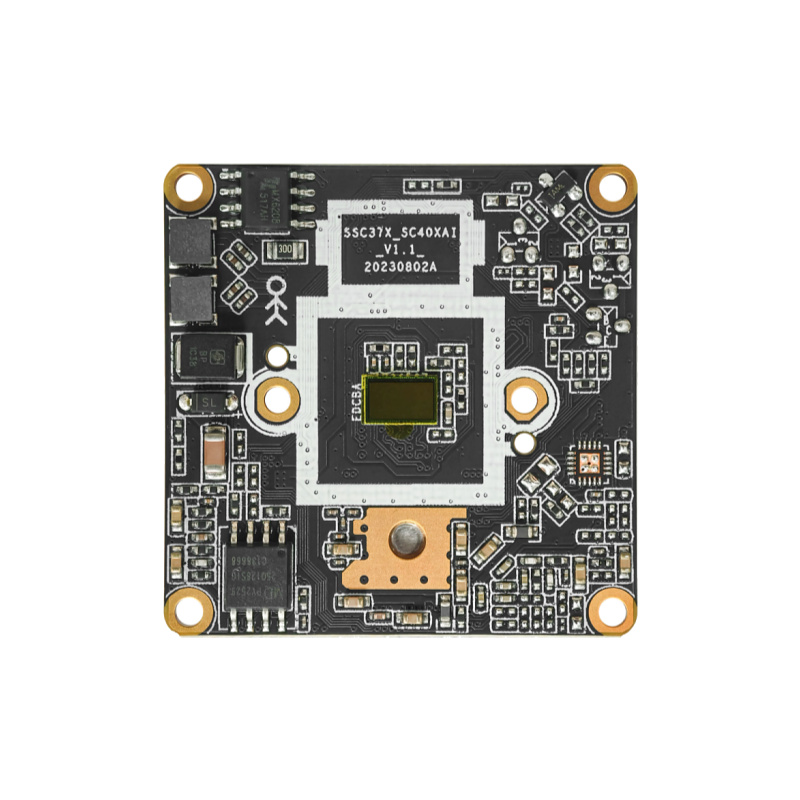

| Image Sensor | 1/3" 4MP Smartsens SC2337P CMOS |

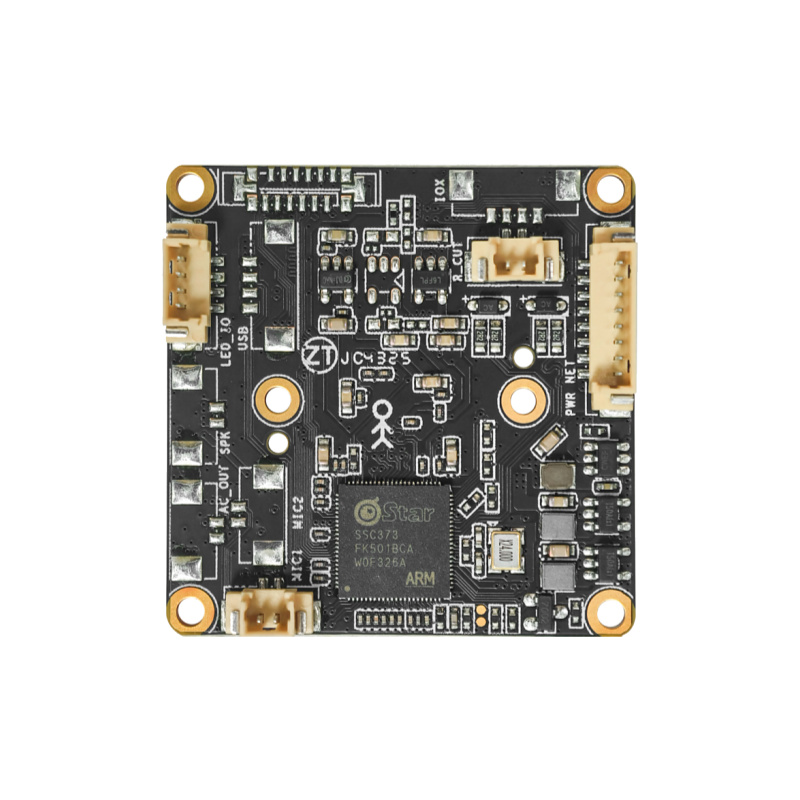

| Soc Chip | Sigmastar SSC373 |
| Effective Pixels | 2560(H)×1440 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | No |
| Light Mode | Smart(dual-light) / IR / White light, adjustable |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: 30fps@4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 30fps@QVGA(640x360)/CIF(352x288) |
| Video Bitrates | Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
| Snapshot | Sub Stream(SD) snapshot |
| Image Rotation | No |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC, AEC |
| Mic | Yes |
| Speaker | No |
| Led | |
| IR Led | Yes |
| White Led | Yes |
| Smart Control | Yes |
| Lens | |
| Focal length | fixed Lens/AF Lens |
| IR-CUT fixed position | L= 20mm, ID=2.0mm |
| Language | |
| Languages | English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
| Smart Detection | |
| Motion Detection | Yes |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | No |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet |
| Trigger Action Linkage | Snapshot, Record, (Red-blue Led flash) optional, White LED Flash, Voice siren, Email, FTP |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Email, FTP |
| Reset Button | Yes |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 2 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
| Suggest users | 2 |
| Optional Peripheral Equipment | |
| IR-CUT | 5-12V, 25-60Ω, ID:2.0mm |
| Condenser Mic | 28 - 30 dB |
| Fill-in Led | IR/White , pwm control |
| Red&blue Alarm light | No |
| Reset button | Yes (Active Low) |
| AF Lens Control | No |

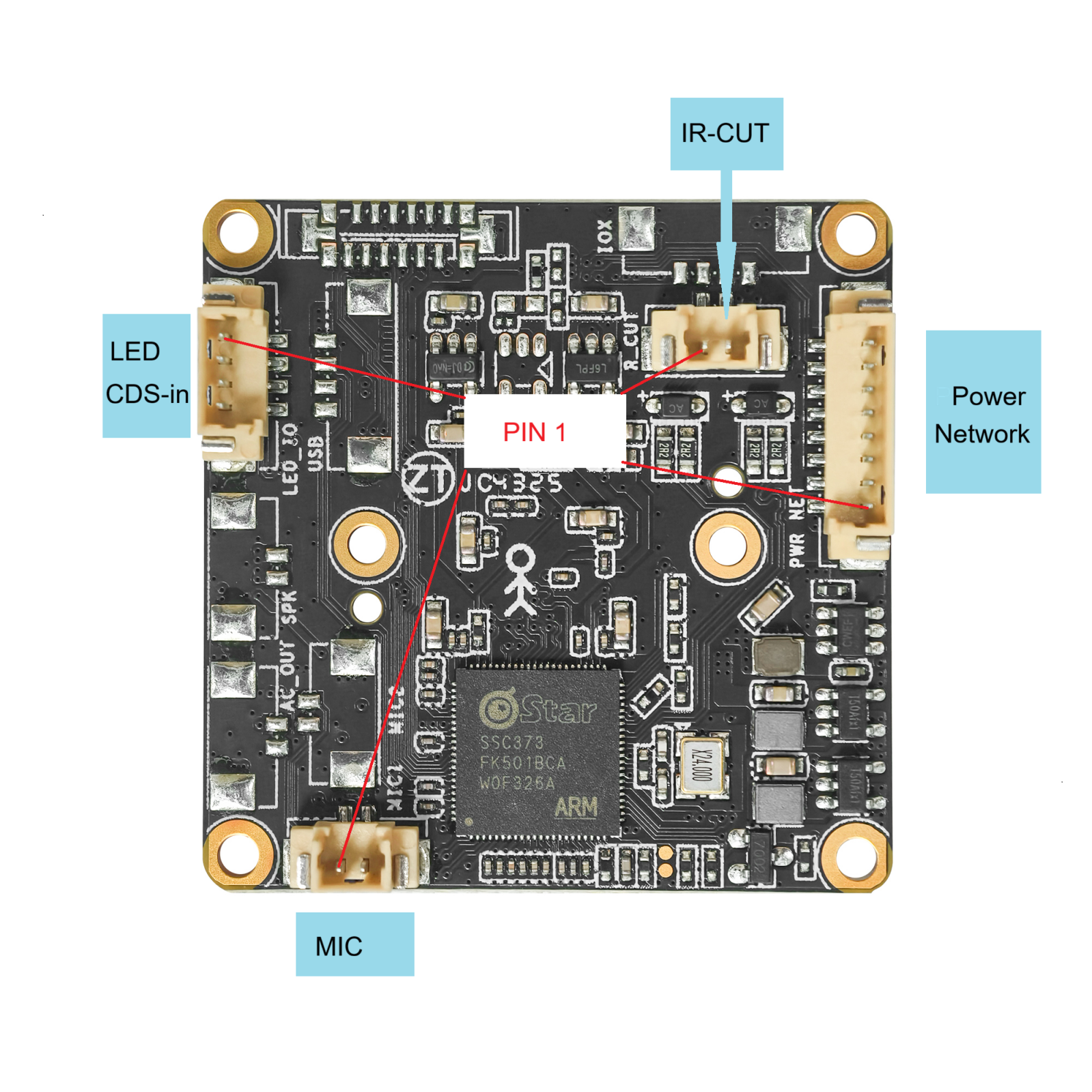

Connector Definition and Description
| Functions | Index | Pin definition | Description |
|---|---|---|---|
| Power/Network | 1 | DC 12V+ | DC 12V+ (9.5V-15V) |
| 2 | GND | GND | |
| 3 | RJ45_6 | Network_RJ6 | |
| 4 | RJ45_3 | Network_RJ3 | |
| 5 | RJ45_2 | Network_RJ2 | |
| 6 | RJ45_1 | Network_RJ1 | |
| 7 | Reset | Reset (Active Low) | |
| 8 | LED1 | Link active (3.3V) | |
| Mic | 1 | MIC+ | Mic (Condenser Mic) |
| 2 | MIC- | ||
| IR-CUT | 1 | AOUT | IR-CUT+ (5-12V,25-60Ω) |
| 2 | BOUT | IR-CUT- (5-12V,25-60Ω) | |
| LED board | 1 | GND | GND |
| 2 | CDS-in | To led board (active-high 3.3v) | |
| 3 | PWM1 | IR led control (0-3.3V) | |
| 4 | PWM0 | White led control (0-3.3V) |
