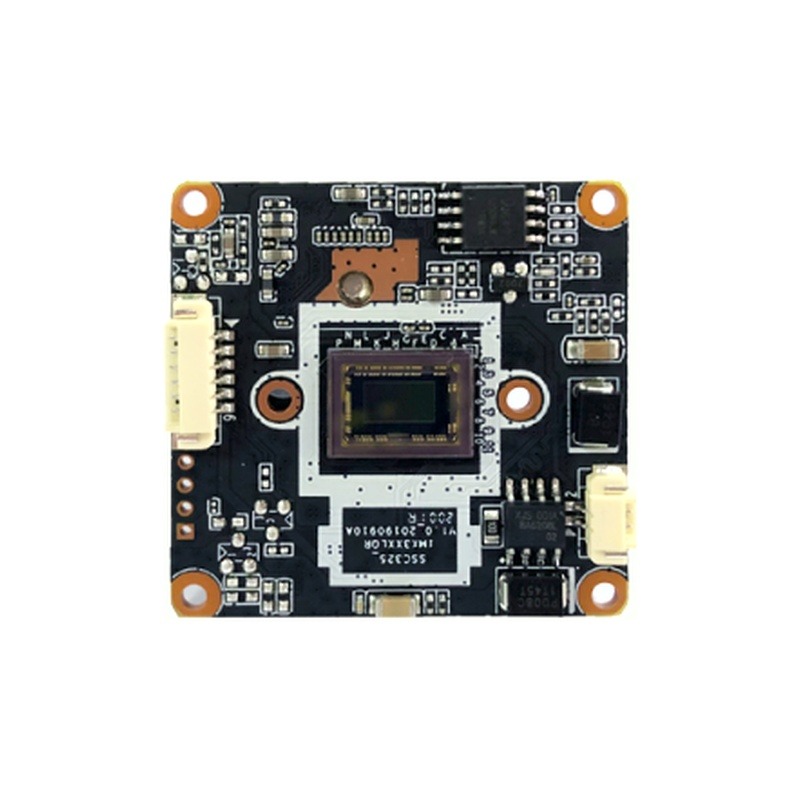

MC200J12 Super Starlight IPC Module – SSC335 + Sony IMX307 Full-Color
| MC200J12 Super Starlight IPC Module – Sony IMX307 Full-ColorSolution: SSC335 + Sony IMX307 1/2.8” CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: up to 1080P @ 30fps Low-Light: Super starlight, 0.01 Lux sensitivity Audio: G.711U/G.711A, two-way Network: RJ45 10/100M, ONVIF/HTTP/RTSP/P2P, optional GB28181/RTMP Size: 38 × 38 × 15mm | Power: DC12V / PoE, 1.2W max |
Features
*1/2.8” Sony IMX307 super starlight CMOS sensor – 0.01 Lux low-light sensitivity, 50dB SNR
*H.265+/H.265/H.264 video encoding with P/N picture, mirror/flip, 3D noise reduction
*Main stream up to 1080P/720P/D1 @ 30fps; sub stream D1/VGA/640×360/CIF @ 30fps; CBR/VBR
*G.711U/G.711A audio codec; two-way voice intercom
*Integrated IRCUT circuit – auto/external/manual/timer day-night control
*OSD overlay; JPEG snapshot capture
*ONVIF; HTTP/RTSP/DHCP/NTP/P2P; optional GB28181, RTMP, multi-NVR protocols
*IP address filtering
*DC12V or PoE power input
*SDK: Windows, Android, Linux
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38×15mm dual-board module; OEM/ODM customization supported
Specifications
| General | Description |
| Model | MC200J12 |
| Main Control Chip | SigmaStar SSC335 |
| Image Sensor | Sony IMX307, 1/2.8” CMOS, super starlight |
| Sensitivity | 0.01 Lux; SNR ≥ 50dB |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Main Stream | 1080P / 720P / D1 @ up to 30fps (CBR/VBR) |
| Sub Stream | D1 / VGA / 640×360 / CIF @ 30fps |
| Image Processing | P/N picture, mirror/flip, 3D noise reduction |
| Audio | Description |
| Audio Codec | G.711U / G.711A |
| Two-way Audio | Supported |
| Lighting | Description |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet, 2KV isolation |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF, P2P; optional GB28181, RTMP, multi-NVR protocols |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V or PoE, 1.2W max |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm × 15mm (dual-board) |
| Weight | 0.06 kg |
