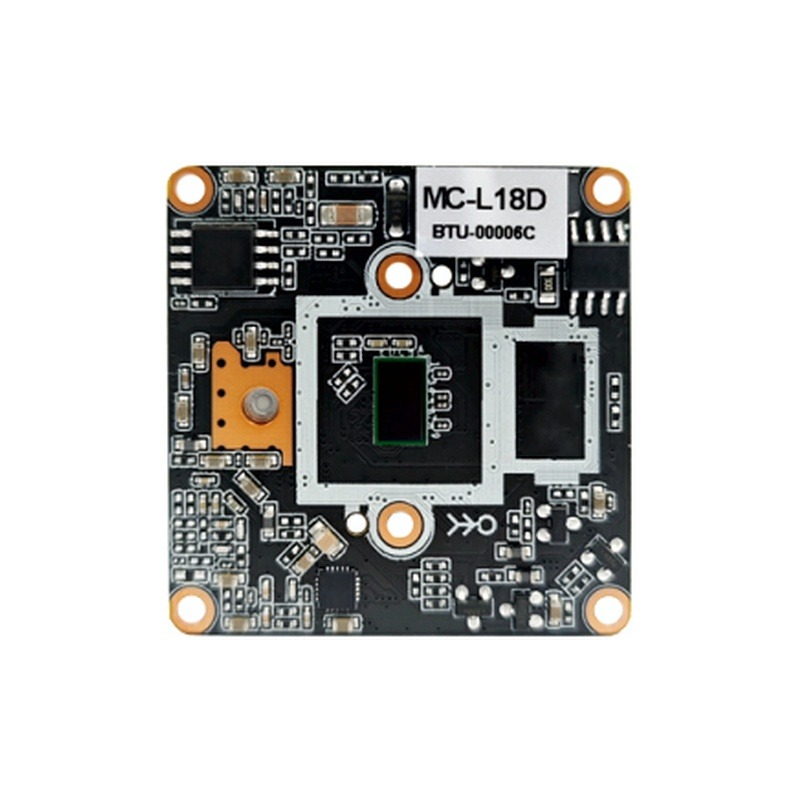

MC-L18D 6MP Starlight Dual-Light IPC Module – SSC377D + GC5063 AI Detection
| MC-L18D 6MP Starlight Dual-Light IPC Module – GC5063 AI DetectionSolution: SSC377D + GC5063 6MP 1/2.7″ Starlight CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 3072×2048 / 30fps @ 2560×1440 / 1920×1080 Dual Light: Full-color (warm) + IR; CDS control Smart: Pedestrian / Vehicle / Non-motor vehicle Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF/HTTP/RTSP/P2P/GB28181 Size: 38 mm × 38 mm | Power: DC12V / 160mA |
Features
*1/2.7″ GC5063 6MP starlight CMOS sensor – exceptional low-light sensitivity
*H.265+/H.265/H.264 encoding; bitrate 0.1–8 Mbps; frame rate 1–30 fps adjustable
*Dual light: full-color (warm) + infrared; CDS/PWM light signal control
*Soft photosensitivity: dual-light / full-color / infrared mode
*AI intelligent analysis: pedestrian, vehicle, non-motor vehicle detection
*Dual light source alarm and sound alarm
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range
*IO interface: electric zoom and auto-focus lens support
*Integrated IRCUT circuit – auto/external/manual/timer day-night control
*G.711 audio; two-way voice intercom; audio-video synchronization
*ONVIF; HTTP/RTSP/DHCP/NTP/P2P; optional GB28181, RTMP
*Mobile APP: VideoLink (iOS & Android); SDK: Windows, Android, Linux
*Supports POE expansion; IP address filtering; character overlay
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*38×38mm compact PCB; OEM/ODM customization supported
Specifications
| General | Description |
| Model | MC-L18D |
| Main Control Chip | SSC377D |
| Image Sensor | GC5063, 6MP, 1/2.7″ Starlight CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 8 Mbps (adjustable) |
| Frame Rate | 1 – 30 fps (adjustable) |
| Main Stream | 25FPS @ 3072×2048, 2592×1944, 2688×1520; 30FPS @ 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | 720×480, D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | CDS, PWM infrared, PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported |
| Smart Features | Description |
| Intelligent Analysis | Pedestrian detection, vehicle detection, non-motor vehicle detection |
| Alarm | Dual light source alarm, sound alarm |
| IO Interface | Electric zoom and auto-focus lens support |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF, P2P; optional GB28181, RTMP |
| Mobile APP | VideoLink (iOS & Android) |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 160 mA |
| Working Temperature | -40°C to +85°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
| Other | Supports POE expansion |
