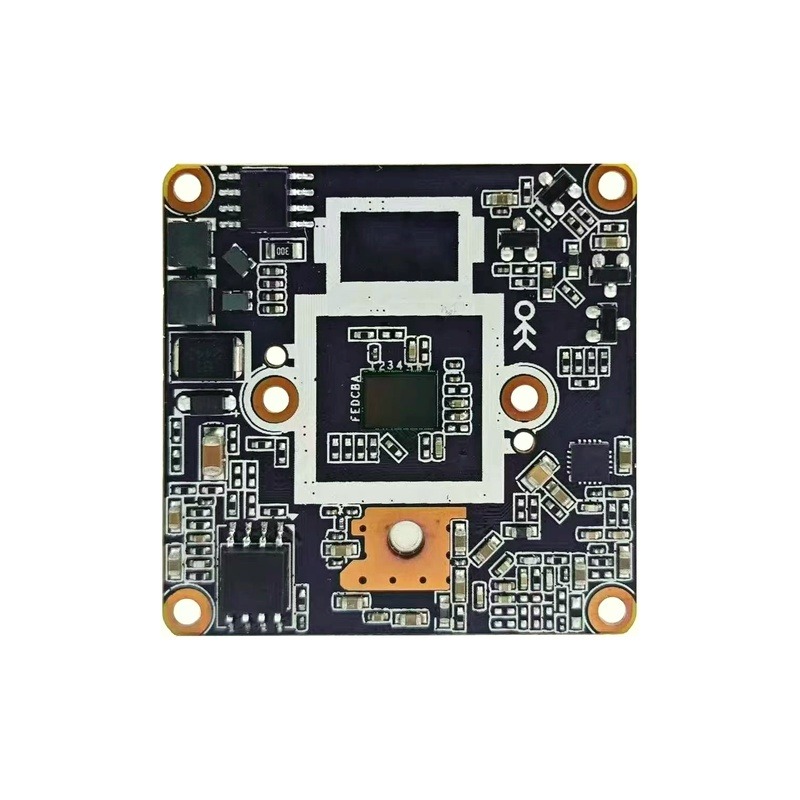

MC-L12E 5MP Dual-Light WDR IPC Module – SSC377D + SC535 Smart Detection
| MC-L12E 5MP Dual-Light WDR IPC Module – SC535 Smart DetectionSolution: SSC377D + SC535 5MP 1/2.7” CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2592×1944 / 2560×1440 / 1920×1080 Dual Light: Full-color (warm light) + IR switchable Smart: Human / Area / Tripwire detection Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm | Power: DC12V / 130mA |
Features
*1/2.7” SC535 5MP CMOS sensor for high-definition dual-light surveillance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–6 Mbps adjustable; frame rate 1–25 fps adjustable
*Dual light mode: full-color (warm light) + infrared; switchable to infrared-only or full-color-only
*Soft photosensitivity control: Dual-light / Full-color / Infrared mode
*Intelligent analysis: precise human detection, area detection, tripwire detection
*Dual light source alarm and sound alarm output
*Voice intercom, voice broadcast, custom voice support
*Image flip; HDR wide dynamic range
*Integrated IRCUT switching circuit – auto/external/manual/timer day-night control
*G.711 audio codec; two-way voice intercom; audio-video synchronization
*OSD support; real-time audio/video transmission
*ONVIF compliant; HTTP/RTSP/DHCP/NTP protocol support
*SDK: Windows, Android, Linux
*Comprehensive lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38mm PCB; OEM/ODM customization supported for security camera manufacturers
Specifications
| General | Description |
| Model | MC-L12E |
| Main Control Chip | SSC377D |
| Image Sensor | SC535, 5MP, 1/2.7” CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 6 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 25FPS @ 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720, 1944×1944, 1200×1200 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | PWM infrared + PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported (voice intercom, voice broadcast, custom voice) |
| Smart Features | Description |
| Intelligent Analysis | Precise human detection, area detection, tripwire detection |
| Alarm | Dual light source alarm, sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 130 mA |
| Working Temperature | -40°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
