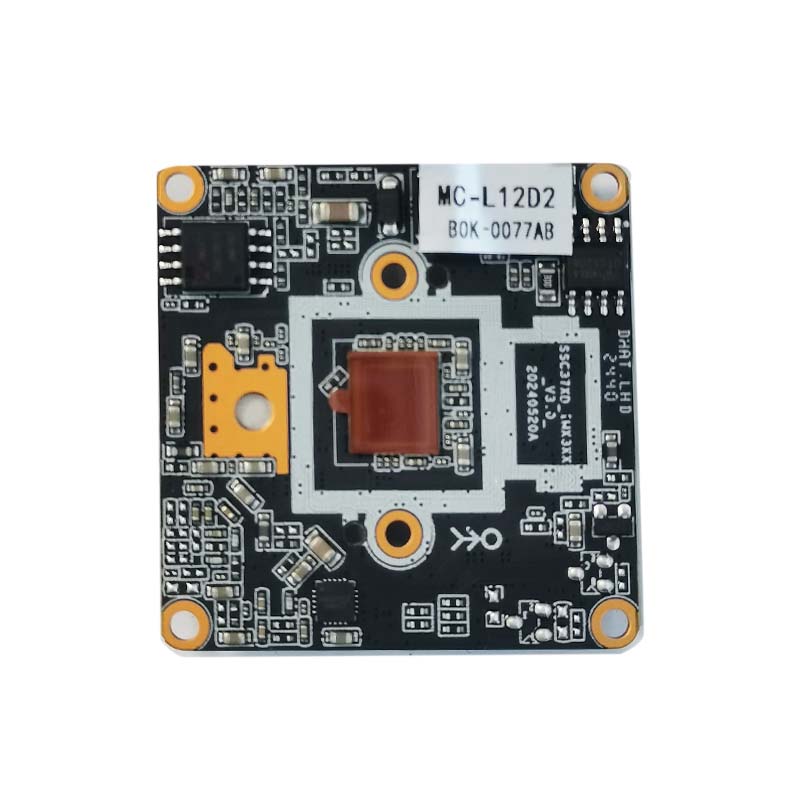

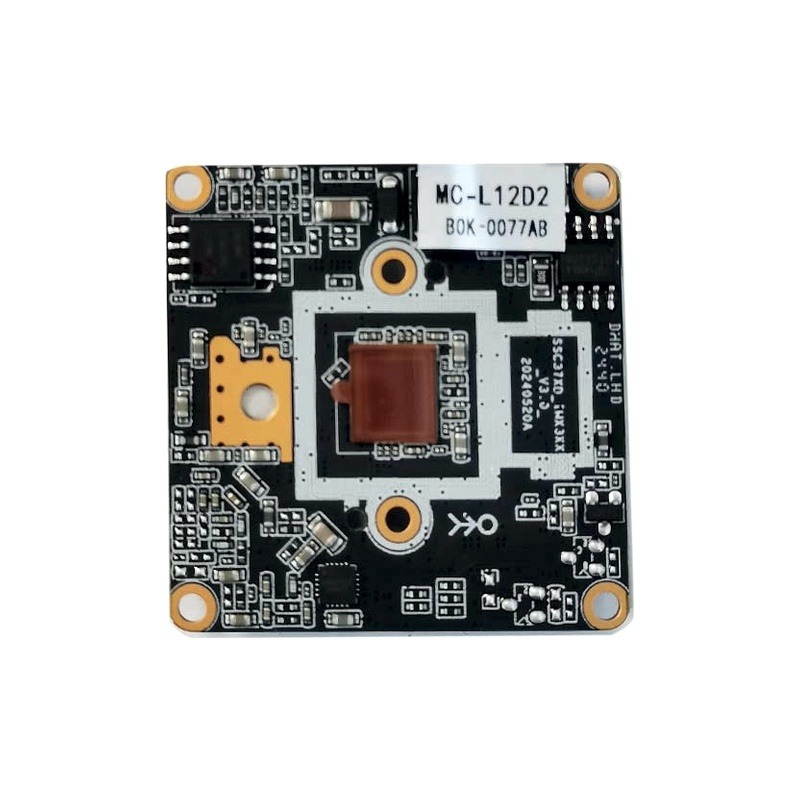

MC-L12D2 5MP Dual-Light IPC Module – SSC377D + Sony IMX335 Starlight
 | MC-L12D2 5MP Dual-Light IPC ModuleSolution: SSC377D+Sony IMX335 5MP 1/2.8" CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2592×1944 / 2560×1440 / 1920×1080 Dual Light: Full-color (warm light) + IR switchable Smart: Human detection / Area detection / Tripwire Audio: G.711, two-way intercom, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm | Power: DC12V / 130mA |
Features
*1/2.8" Sony IMX335 5MP CMOS sensor – true starlight low-light performance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–6 Mbps adjustable; frame rate 1–25 fps adjustable
*Dual light mode: full-color (warm light) + infrared; switchable to infrared-only or full-color-only
*Soft photosensitivity control: Dual-light mode / Full-color mode / Infrared mode
*Intelligent analysis: precise human detection, area intrusion detection, tripwire detection
*Dual light source alarm and sound alarm
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range
*Integrated IRCUT switching circuit – auto/external/manual/timer day-night control
*G.711 audio codec; two-way voice intercom; audio-video synchronization
*OSD support; real-time audio/video transmission
*ONVIF compliant; supports HTTP/RTSP/DHCP/NTP and other protocols
*Mobile APP: VideoLink (iOS & Android)
*SDK available: Windows, Android, Linux
*Comprehensive lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38mm form factor for tight integration
*OEM/ODM customization supported
Specifications
| General | Description |
| Model | MC-L12D2 |
| Main Control Chip | SSC377D |
| Image Sensor | Sony IMX335, 5MP, 1/2.8" CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 6 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream Resolution | 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720, 1944×1944, 1200×1200 @ 25fps |
| Sub Stream Resolution | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm light) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated switching circuit; auto / external / manual / timer control |
| Light Interface | PWM infrared + PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported (voice intercom, voice broadcast, custom voice) |
| Smart Features | Description |
| Intelligent Analysis | Precise human detection, area intrusion detection, tripwire detection |
| Alarm | Dual light source alarm, sound alarm |
| Business Functions | OSD, real-time audio/video, human detection, dual light alarm, sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| Mobile APP | VideoLink (iOS & Android) |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12 V |
| Power Consumption | 130 mA |
| Working Temperature | -40℃ to +65℃ |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
SSC377D OpenIPC Compatibility
MC-L12D2 is a Videolink / MC IPC camera module based on SigmaStar SSC377D with IMX335.
Can MC-L12D2 run OpenIPC?
OpenIPC has an upstream SSC377D firmware build. A community report records a vendor-module crash on an SSC377D + IMX335 board. MC-L12D2 must be checked with a specific firmware build and PCB revision before OpenIPC video operation is confirmed.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
