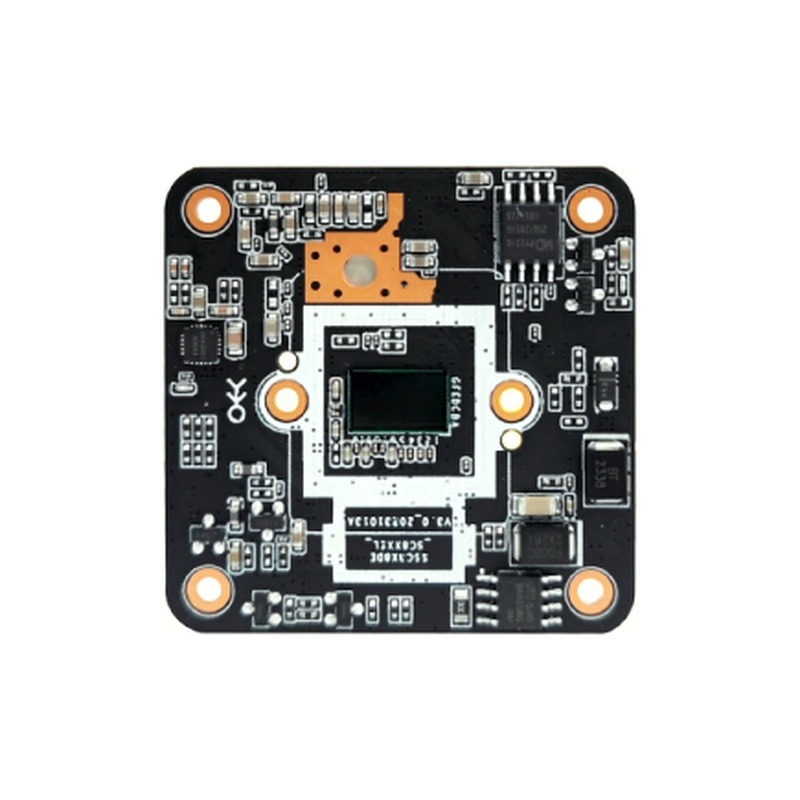

MC-J86 8MP Full-Color Blacklight IPC Module – SSC378DE + SC850AI 4K AI
| MC-J86 8MP Full-Color Blacklight IPC Module – SC850AI 4K AISolution: SSC378DE + SC850AI 8MP 1/1.8″ CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 20fps @ 3840×2160 (4K) / 25fps @ 3072×2048 Light: Full-color (warm light blacklight) Smart: Pedestrian / Vehicle / Area / Tripwire Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 42 mm × 42 mm | Power: DC12V / 150mA |
Features
*1/1.8″ SC850AI 8MP CMOS blacklight sensor – full-color 4K at near-zero illumination
*H.265+/H.265/H.264 encoding; bitrate 0.1–4 Mbps; frame rate 1–25 fps adjustable
*Full-color (warm light) mode – true 24/7 color without IR color cast
*AI intelligent analysis: pedestrian detection, vehicle type detection, area detection, tripwire
*Sound alarm output
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range
*Integrated IRCUT circuit – auto/manual/timer day-night control
*G.711 audio; two-way voice intercom; audio-video synchronization
*OSD support; ONVIF; HTTP/RTSP/DHCP/NTP protocols
*Mobile APP: VideoLink (iOS & Android); SDK: Windows, Android, Linux
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*42×42mm compact PCB; OEM/ODM for security camera manufacturers
Specifications
| General | Description |
| Model | MC-J86 |
| Main Control Chip | SSC378DE |
| Image Sensor | SC850AI, 8MP, 1/1.8″ CMOS (blacklight) |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 4 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 20FPS @ 3840×2160; 25FPS @ 3072×2048; 30FPS @ 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Full-color (warm light blacklight) |
| IRCUT | Integrated circuit; auto / manual / timer control |
| Light Interface | PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported |
| Smart Features | Description |
| Intelligent Analysis | Pedestrian detection, vehicle type detection, area detection, tripwire detection |
| Alarm | Sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| Mobile APP | VideoLink (iOS & Android) |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 150 mA |
| Working Temperature | -40°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 42 mm × 42 mm |
SSC378DE OpenIPC Compatibility
MC-J86 is a Videolink / MC IPC camera module based on SigmaStar SSC378DE with SC850AI.
Can MC-J86 run OpenIPC?
OpenIPC has an upstream SSC378DE firmware build. SC850AI was not confirmed in the inspected Infinity6C sensor loader. SC850SL and SC830AI are different names, so those entries do not establish compatibility for MC-J86.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
