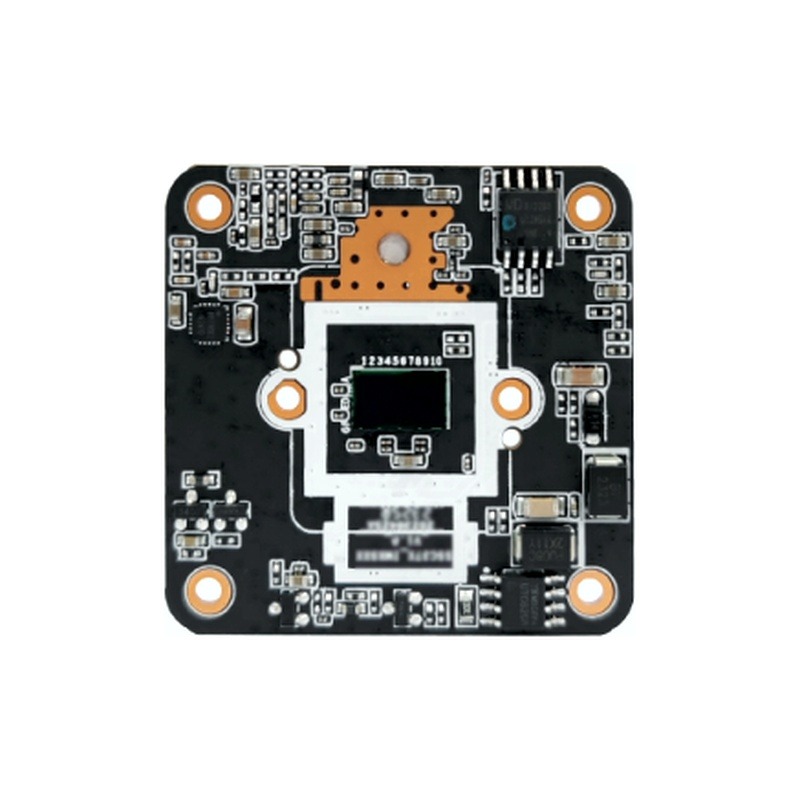

MC-J30 4MP Blacklight IPC Module – SSC377 + SC450X Full-Color 1/1.8″
| MC-J30 4MP Blacklight IPC Module – SC450X Full-Color 1/1.8″Solution: SSC377 + SC450X 4MP 1/1.8″ CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2688×1520 / 2560×1440 / 1920×1080 Light: Full-color (warm light blacklight) Smart: Pedestrian / Vehicle / Area / Tripwire Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 42 mm × 42 mm | Power: DC12V / 100mA |
Features
*1/1.8″ SC450X 4MP CMOS blacklight sensor – full-color imaging in near-zero light
*H.265+/H.265/H.264 encoding; bitrate 0.1–4 Mbps; frame rate 1–25 fps adjustable
*Full-color (warm light) mode – true color 24/7 without IR color shift
*Soft photosensitivity control for optimal low-light performance
*AI intelligent analysis: pedestrian detection, vehicle type detection, area detection, tripwire
*Sound alarm; dual light source alarm
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range
*Integrated IRCUT circuit – auto/manual/timer day-night control
*G.711 audio; two-way voice intercom; audio-video synchronization
*OSD support; ONVIF; HTTP/RTSP/DHCP/NTP protocols
*SDK: Windows, Android, Linux
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 42×42mm PCB; OEM/ODM customization for security camera manufacturers
Specifications
| General | Description |
| Model | MC-J30 |
| Main Control Chip | SSC377 |
| Image Sensor | SC450X, 4MP, 1/1.8″ CMOS (blacklight) |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 4 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 25FPS @ 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Full-color (warm light blacklight) |
| IRCUT | Integrated circuit; auto / manual / timer control |
| Light Interface | PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported |
| Smart Features | Description |
| Intelligent Analysis | Pedestrian detection, vehicle type detection, area detection, tripwire detection |
| Alarm | Sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 100 mA |
| Working Temperature | -40°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 42 mm × 42 mm × 2 mm |
SSC377 OpenIPC Compatibility
MC-J30 is a Videolink / MC IPC camera module based on SigmaStar SSC377 with SC450X.
Can MC-J30 run OpenIPC?
OpenIPC has an upstream SSC377 firmware build. SC450X does not identify a complete sensor variant. An upstream experimental SC450AI entry does not establish a driver match for this module; identify the fitted sensor first.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
