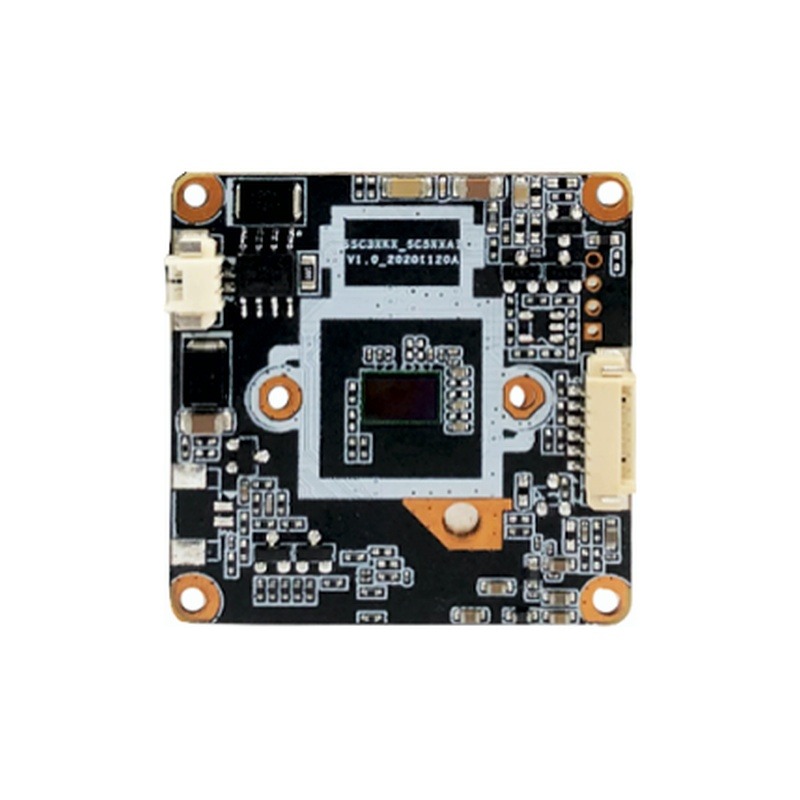

MC-F46D 5MP Dual-Light IPC Module – SSC377D + SC4653 AI Human Detection
| MC-F46D 5MP Dual-Light IPC Module – SC4653 AI Human DetectionSolution: SSC377D + SC4653 5MP 1/3″ CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2592×1944 / 2560×1440 / 1920×1080 Dual Light: Full-color (warm light) + IR switchable Smart: Human / Area / Tripwire detection Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm | Power: DC12V / 120mA |
Features
*1/3″ SC4653 5MP CMOS sensor for sharp dual-light surveillance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–4 Mbps; frame rate 1–25 fps adjustable
*Dual light mode: full-color (warm light) + infrared; switchable to any single mode
*Soft photosensitivity control: Dual-light / Full-color / Infrared mode
*Intelligent analysis: precise human detection, area intrusion detection, tripwire detection
*Dual light source alarm and sound alarm
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range
*Integrated IRCUT switching circuit – auto/external/manual/timer control
*G.711 audio codec; two-way voice intercom; audio-video synchronization
*OSD support; real-time audio/video transmission
*ONVIF; HTTP/RTSP/DHCP/NTP protocol support
*SDK: Windows, Android, Linux
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38mm PCB for tight camera integration; OEM/ODM available
Specifications
| General | Description |
| Model | MC-F46D |
| Main Control Chip | SSC377D |
| Image Sensor | SC4653, 5MP, 1/3″ CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 4 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 25FPS @ 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | PWM infrared + PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported |
| Smart Features | Description |
| Intelligent Analysis | Precise human detection, area intrusion, tripwire detection |
| Alarm | Dual light source alarm, sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 120 mA |
| Working Temperature | -40°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
SSC377D OpenIPC Compatibility
MC-F46D is a Videolink / MC IPC camera module based on SigmaStar SSC377D with SC4653.
Can MC-F46D run OpenIPC?
OpenIPC has an upstream SSC377D firmware build. The specification identifies SC4653. The upstream GC4653 entry is a different part number and must not be treated as a match. A confirmed SC4653 driver and sensor identification are still needed.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
