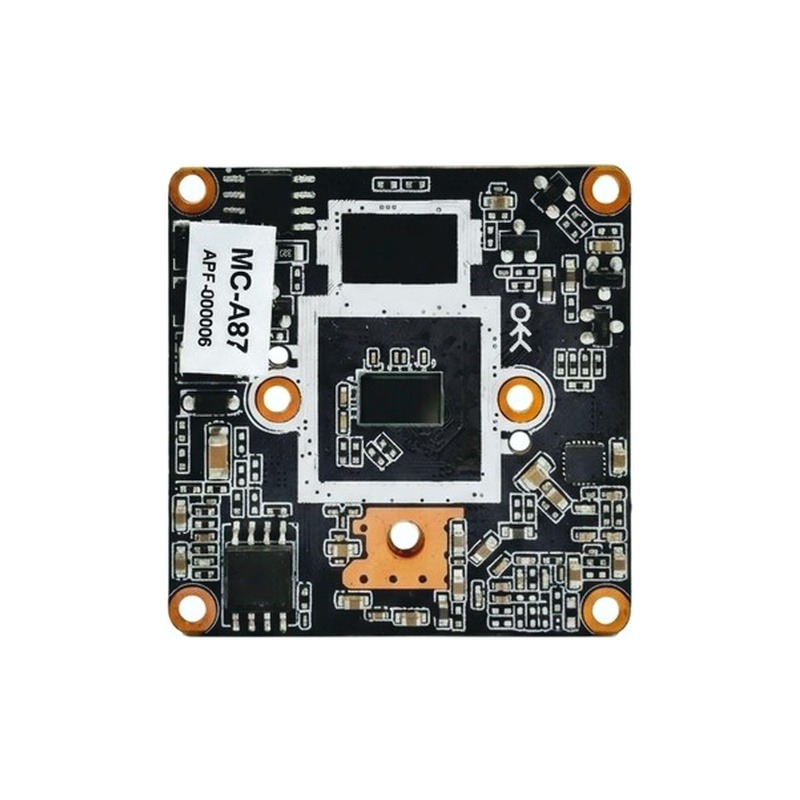

MC-A87 8MP AI Dual-Light IPC Module – SSC38X + GC8613 Blacklight Hard-IR
| MC-A87 8MP AI Dual-Light IPC Module – SSC38X + GC8613 Blacklight Hard-IRSolution: SSC38X + GC8613 8MP 1/2.7” CMOS blacklight Encoding: H.265+ / H.265 / H.264 Main Stream: 20fps @ 3840×2160; 30fps @ 2592×1944 Light: IR / Dual-light / Full-color; CDS + hard-IR Smart: Human / Vehicle / Area / Tripwire detection Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm | Power: DC12V, PoE expansion |
Features
*1/2.7” 8MP GC8613 CMOS blacklight sensor for high-definition surveillance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–12 Mbps; frame rate 1–20 fps adjustable
*2-way light signal control: CDS, PWM; hard-IR illumination
*Soft photosensitivity: infrared mode, dual-light mode, full-color mode
*Image flip
*Intelligent analysis: human detection, vehicle detection, custom area, tripwire detection
*Dual light source alarm and sound alarm
*Voice intercom, voice broadcast, custom voice support
*Integrated IRCUT switching circuit – auto/external/manual/timer day-night control
*G.711 audio codec; two-way voice intercom; 1-ch SPK output (8Ω 2W); audio-video synchronization
*OSD support; character overlay; privacy masking
*IP address filtering; 1-channel IO alarm input/output
*ONVIF compliant; HTTP/RTSP/DHCP/NTP protocol support; PoE expansion supported
*Note: this model does not support the mobile monitoring app
*Lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38mm PCB; OEM/ODM customization supported for security camera manufacturers
Specifications
| General | Description |
| Model | MC-A87 |
| Main Control Chip | SSC38X |
| Image Sensor | GC8613, 8MP, 1/2.7” CMOS blacklight |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 12 Mbps (adjustable) |
| Frame Rate | 1 – 20 fps (adjustable) |
| Main Stream | 20FPS @ 3840×2160; 25FPS @ 3072×2048; 30FPS @ 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | 720×480, D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Infrared / Dual-light / Full-color (soft photosensitivity) |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | CDS, PWM infrared, PWM warm light; hard-IR |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output + 1-ch SPK output (8Ω 2W) |
| Two-way Audio | Supported |
| Smart Features | Description |
| Intelligent Analysis | Human detection, vehicle detection, custom area, tripwire detection |
| Alarm | Dual light source alarm, sound alarm |
| Other | Privacy masking, IP address filtering, 1-ch IO alarm input/output |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| Mobile APP | Not supported on this model |
| Power & Environment | Description |
| Power Supply | DC 12V; PoE expansion supported |
| Working Temperature | -40°C to +85°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
