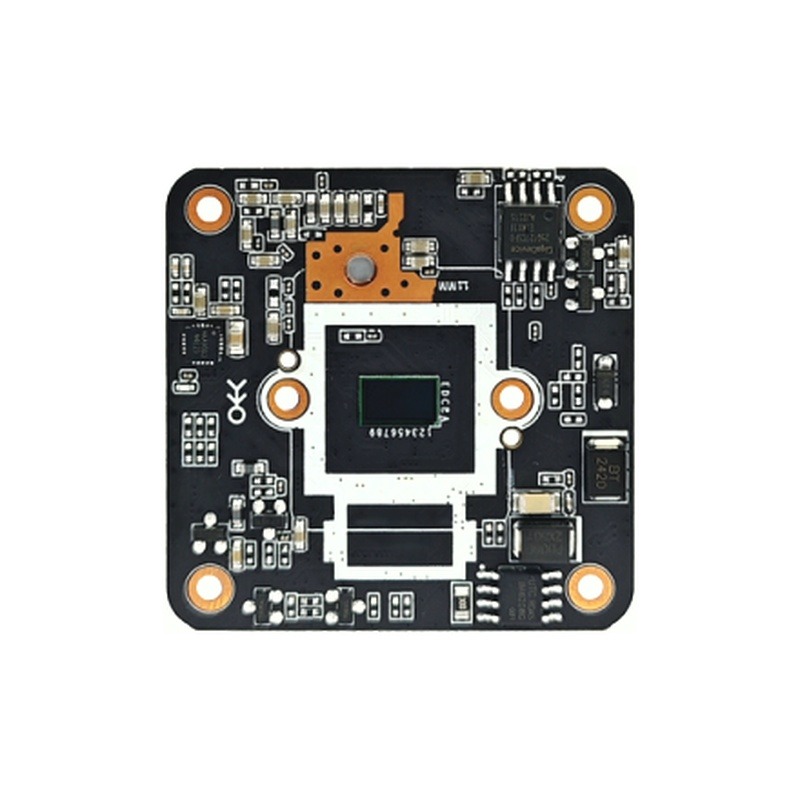

MC-A85 8MP AI Dual-Light IPC Module – SSC378DE + GC8613 Blacklight 4K
| MC-A85 8MP AI Dual-Light IPC Module – GC8613 Blacklight 4KSolution: SSC378DE + GC8613 8MP 1/2.7″ CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 20fps @ 3840×2160 (4K) / 25fps @ 3072×2048 Dual Light: Full-color (warm) + IR; CDS control Smart: Human / Vehicle / Area / Tripwire detection Audio: G.711, two-way, 1-in + 1-out + SPK Network: RJ45 10/100M, ONVIF/HTTP/RTSP/P2P Size: 42 mm × 42 mm | Power: DC12V |
Features
*1/2.7″ GC8613 8MP CMOS blacklight sensor – true full-color at ultra-low illumination
*H.265+/H.265/H.264 video encoding; bitrate 0.1–12 Mbps adjustable; 4K @ 20fps
*Dual light mode: full-color (warm) + infrared; CDS/PWM light signal control
*Soft photosensitivity: infrared mode, dual light mode, full color mode
*AI intelligent analysis: human detection, vehicle detection, custom area, tripwire detection
*Image flip; digital wide dynamic range; 1-way IO alarm input/output
*Voice intercom, voice broadcast, custom voice support; SPK (8Ω 2W) output
*Integrated IRCUT circuit – auto/external/manual/timer day-night control
*G.711 audio; two-way voice intercom; audio-video synchronization
*ONVIF; HTTP/RTSP/DHCP/NTP/P2P; optional GB28181, RTMP
*Mobile APP: VideoLink (iOS & Android); SDK: Windows, Android, Linux
*IO interface: supports electric zoom and auto-focus lens modules
*Comprehensive lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 42×42mm PCB; supports POE expansion
*Privacy masking; IP address filtering; OEM/ODM customization
Specifications
| General | Description |
| Model | MC-A85 |
| Main Control Chip | SSC378DE |
| Image Sensor | GC8613, 8MP, 1/2.7″ CMOS (blacklight) |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 12 Mbps (adjustable) |
| Frame Rate | 1 – 30 fps (adjustable) |
| Main Stream | 20FPS @ 3840×2160; 25FPS @ 3072×2048; 30FPS @ 2592×1944, 2560×1440, 1920×1080, 1280×720 |
| Sub Stream | 720×480, D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | CDS, PWM infrared, PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output + SPK (8Ω, 2W) |
| Two-way Audio | Supported (voice intercom, voice broadcast, custom voice) |
| Smart Features | Description |
| Intelligent Analysis | Human detection, vehicle detection, custom area, tripwire detection |
| Alarm | Dual light source alarm, sound alarm, 1-way IO alarm in/out |
| IO Interface | Supports electric zoom and auto-focus interface |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF, P2P; optional GB28181, RTMP |
| Mobile APP | VideoLink (iOS & Android) |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Working Temperature | -40°C to +85°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 42 mm × 42 mm |
| Other | Supports POE expansion |
