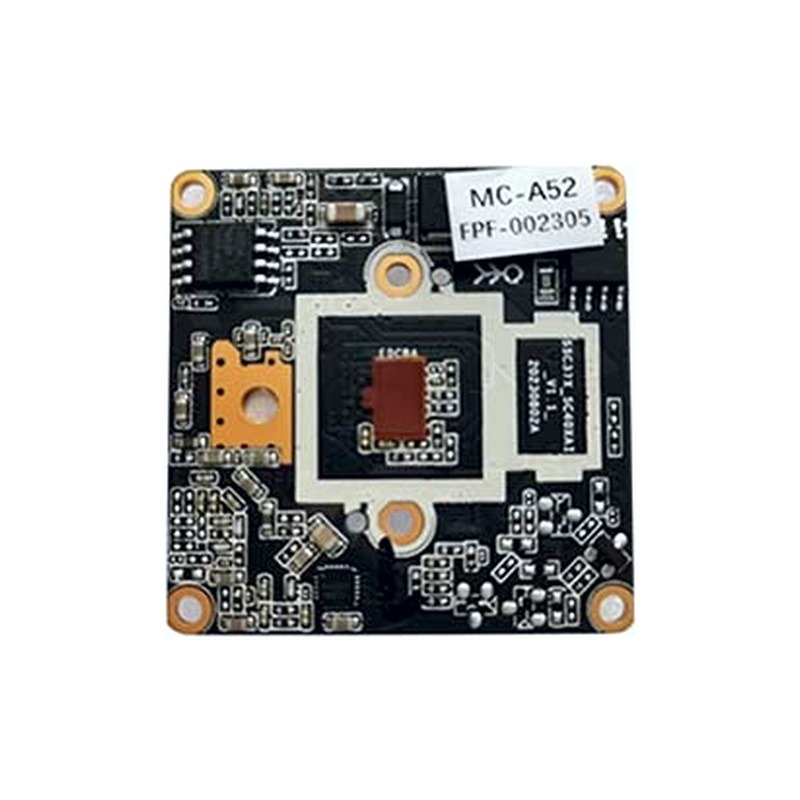

MC-A52 5MP Dual-Light IPC Module – SSC377 + SC4336P Smart Detection
| MC-A52 5MP Dual-Light IPC Module – SC4336P Smart DetectionSolution: SSC377 + SC4336P 5MP 1/3″ CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2560×1440 / 1920×1080 Dual Light: Full-color (warm light) + IR switchable Smart: Human detection / Custom area Audio: G.711, two-way, 1-ch in + 1-ch out Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm | Power: DC12V / 100mA |
Features
*1/3″ SC4336P 5MP CMOS sensor for high-definition dual-light surveillance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–4 Mbps adjustable; frame rate 1–25 fps adjustable
*Dual light mode: full-color (warm light) + infrared; switchable to infrared-only or full-color-only
*Soft photosensitivity control: Dual-light / Full-color / Infrared mode
*Intelligent analysis: accurate human detection, custom area intrusion detection
*Dual light source alarm and sound alarm output
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range (WDR)
*Integrated IRCUT switching circuit – auto/external/manual/timer day-night control
*G.711 audio codec; two-way voice intercom; audio-video synchronization
*OSD support; real-time audio/video transmission
*ONVIF compliant; HTTP/RTSP/DHCP/NTP protocol support
*Mobile APP: VideoLink (iOS & Android); SDK: Windows, Android, Linux
*Comprehensive lightning protection: GB/T17626.5 & IEC61000-4-5
*Compact 38×38mm PCB for seamless camera module integration
*OEM/ODM customization supported for security camera manufacturers
Specifications
| General | Description |
| Model | MC-A52 |
| Main Control Chip | SSC377 |
| Image Sensor | SC4336P, 5MP, 1/3″ CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 4 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 20FPS @ 2888×1620; 25FPS @ 2560×1440, 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | PWM infrared + PWM warm light |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input + 1-ch linear output |
| Two-way Audio | Supported (voice intercom, voice broadcast, custom voice) |
| Smart Features | Description |
| Intelligent Analysis | Accurate human detection, custom area intrusion detection |
| Alarm | Dual light source alarm, sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| Mobile APP | VideoLink (iOS & Android) |
| SDK | Windows, Android, Linux |
| Power & Environment | Description |
| Power Supply | DC 12V |
| Power Consumption | 100 mA |
| Working Temperature | -40°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
| Dimensions | 38 mm × 38 mm |
SSC377 OpenIPC Compatibility
MC-A52 is a Videolink / MC IPC camera module based on SigmaStar SSC377 with SC4336P.
Can MC-A52 run OpenIPC?
OpenIPC has an upstream SSC377 firmware build. A community report describes failed video initialization on another SSC377 + SC4336P camera. This does not prove MC-A52 fails, but it makes sensor routing and successful video output essential checks before claiming compatibility.
OpenIPC is also searched as “Open IPC”. Compatibility refers to alternative firmware; it does not mean that the factory app, AI detection or original video modes will carry over. Confirm the full SoC and sensor IDs, flash type, PCB revision and intended firmware before conversion.
Evidence reviewed: 16 September 2026. OpenIPC technical reference.
