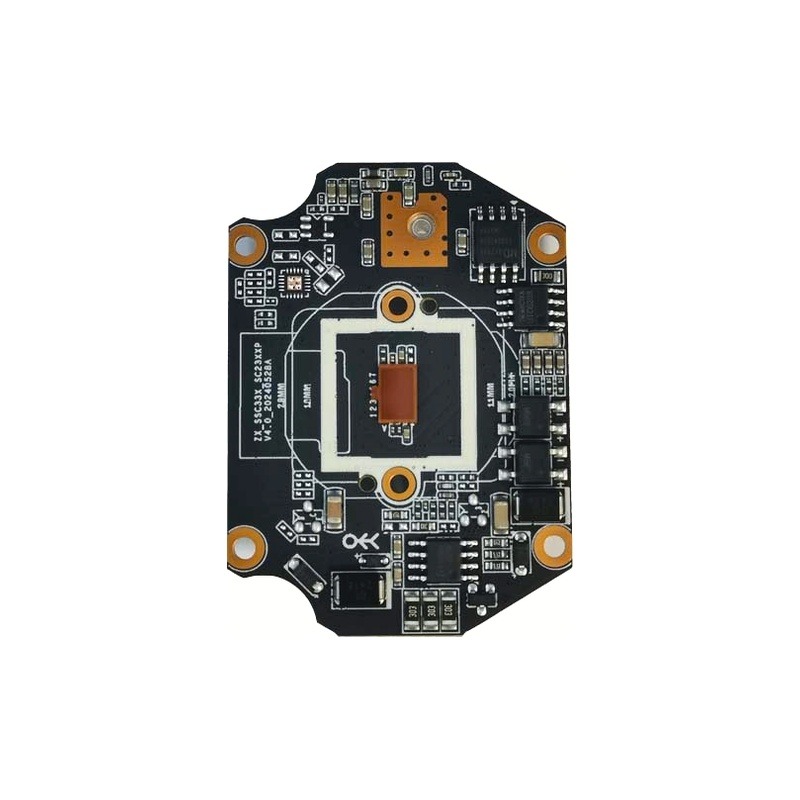

MC-A37P 3MP Dual-Light PoE IPC Module – SSC335 + SC2337P 802.3af
| MC-A37P 3MP Dual-Light PoE IPC Module – SC2337P 802.3afSolution: SSC335 + SC2337P 3MP 1/3” CMOS Encoding: H.265+ / H.265 / H.264 Main Stream: 25fps @ 2304×1296 / 1920×1080 Dual Light: Full-color (warm light) + IR switchable Smart: Human detection / Custom area Power: PoE 802.3af (12W max) or DC12V / 90mA Network: RJ45 10/100M, ONVIF, HTTP/RTSP/DHCP/NTP Size: 38 mm × 38 mm PoE form-factor |
Features
*1/3” SC2337P 3MP CMOS sensor for high-definition dual-light surveillance
*H.265+/H.265/H.264 video encoding; bitrate 0.1–3 Mbps adjustable; frame rate 1–25 fps adjustable
*Integrated PoE (802.3af, 12W max) — also supports DC12V direct power
*Dual light mode: full-color (warm light) + infrared; switchable to infrared-only or full-color-only
*Soft photosensitivity control with CDS ambient-light sensing
*Intelligent analysis: human detection, custom area intrusion detection
*Dual light source alarm and sound alarm output
*Voice intercom, voice broadcast, custom voice support
*Image flip; digital wide dynamic range (WDR)
*Integrated IRCUT switching circuit – auto/external/manual/timer day-night control
*G.711 audio codec; two-way voice intercom; audio-video synchronization
*OSD support; real-time audio/video transmission
*ONVIF compliant; HTTP/RTSP/DHCP/NTP protocol support
*Comprehensive lightning protection: GB/T17626.5 & IEC61000-4-5
*OEM/ODM customization supported for security camera manufacturers
Specifications
| General | Description |
| Model | MC-A37P |
| Main Control Chip | SSC335 |
| Image Sensor | SC2337P, 3MP, 1/3” CMOS |
| Video | Description |
| Video Encoding | H.265+ / H.265 / H.264 |
| Bitrate | 0.1 – 3 Mbps (adjustable) |
| Frame Rate | 1 – 25 fps (adjustable) |
| Main Stream | 25FPS @ 2304×1296, 1920×1080, 1280×720 |
| Sub Stream | D1, VGA, 640×360 |
| Lighting | Description |
| Light Mode | Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only |
| IRCUT | Integrated circuit; auto / external / manual / timer control |
| Light Interface | PWM infrared, PWM warm light, CDS |
| Audio | Description |
| Audio Codec | G.711 |
| Audio Interface | 1-ch linear input (MIC) + 1-ch linear output |
| Two-way Audio | Supported (voice intercom, voice broadcast, custom voice) |
| Smart Features | Description |
| Intelligent Analysis | Human detection, custom area intrusion detection |
| Alarm | Dual light source alarm, sound alarm |
| Network | Description |
| Network Interface | 1 × RJ45, 10/100M self-adaptive Ethernet |
| Protocols | HTTP, RTSP, DHCP, NTP, ONVIF |
| Power & Environment | Description |
| Power Supply | PoE 802.3af (12W max) or DC 12V |
| Power Consumption | 90 mA (DC12V mode) |
| Working Temperature | -30°C to +65°C |
| Lightning Protection | GB/T17626.5, IEC61000-4-5 |
