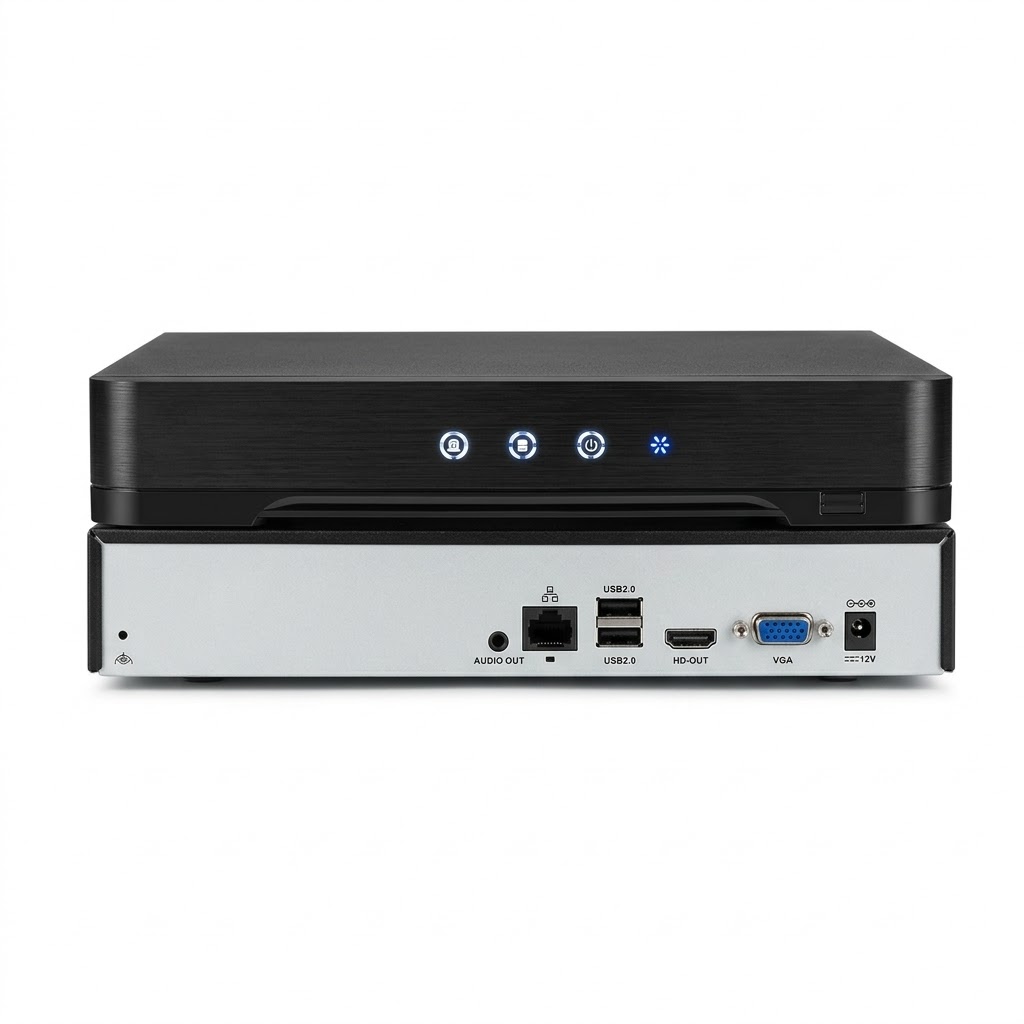

16CH 4K 1SATA GUARD VIEWER NVR
 | 16CH 4K 1SATA NVRLive view：16 Channel*4k Playback：1 x 4K@30, 4 x 5MP@25 16 x D1@30 Bandwidth:64Mbps SATA：1 SATA Interfaces max 10TB Decoding Format:H.265+ / H.265 AI:Human body/Vehicle Detection APP:Guard viewer/Guard Live |
Features
*Support Ultra 265/H.265/H.264 video formats
*M-star SSR621Q platform
*Support 10ch Live view; playback:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 6 x 1080p@30,8x720p@30,16xD1@30
*Incoming/outgoing bandwidth:64/48Mbps
*Support Mobile APP: Guard Viewer (iOS, Android); Client PC software: Guard Station
*Support Web side operation, SDK development;
*Support Customization (ODM, OEM): Manufacturer Name, Model Number, Web/Boot Logo,
*Support private protocol with uniview /unv ip camera(such as Face Recognition/Perimeter Protection/Mixed-traffic Detection)
and third party IPC fully automatically add(such as Hikvision /xm /anj /enz /HS camera.....)
(Profile S, Profile G,Profile T) and RTSP protocols
*Support cross-public network remote debugging, maintenance of NVR all configuration
*Support HDMI and VGA simultaneous output
*Support 1 SATA HDD up to 10 TB
Specifications
Decoding | Description |
Decoding Format | H.265, H.264 |
Decoding Capability | NU3116:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080p@30, 8 x 720p@30, 16 x D1@30 |
Audio Compression | G.711A、G.711U |
Network | Description |
Incoming Bandwidth | 64Mbps |
Outgoing Bandwidth | 48Mbps |
Video/Audio Input | Description |
IP Video Input | NU3116:16-ch |
Video/Audio Output | Description |
HDMI Output | HDMI: 1024x768/60HZ, 1280x720/60HZ, 1280x1024/60HZ, 1600x1200/60HZ, 1920x1080/50HZ, 1920x1080/60HZ, 4K（3840x2160）/30HZ |
VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
3.5mm Audio Output | 1-ch |
Liveview Display | NU16:1/4/6/8/9/16 |
Corridor Mode Screen | NU16:3/4/5/7/9/16 |
Snapshot | Description |
FTP/Schedule/Event Snapshot | 1‑ch snapshot, up to D1 resolution |
Recording | Description |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
Synchronous Playback in Local | NU16:16-ch |
Alarm | Description |
General Alarm | Motion Detection; Human Body Detection; Video Loss; Alarm Input |
Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
Hard Disk | Description |
SATA | 1 SATA Interfaces |
Capacity | Up to 10TB for each HDD |
External Interface | Description |
Network Interface | 1 RJ45 10M/100M self‑adaptive Ethernet Interface |
USB | USB2.0 |
Power Supply | DC 12V/1.5A |
Working Environment | Description |
Working Temperature | -10°C ~ + 55°C |
Working Humidity | ≤ 90% RH (non‑condensing) |
Power Consumption (without HDD) | ≤ 3W |
